PHOTO |
I T E M S |
PRICE US Dollar |
|---|---|---|
NOVUS

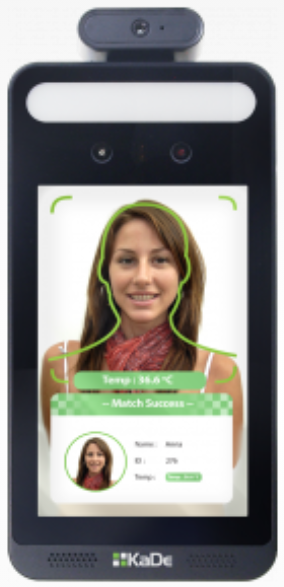

PROFESSIONAL TERMINAL FOR REMOTE BODY TEMPERATURE MEASUREMENT |
NOVUS Professional terminal for remote body temperature measurement KDH-KZ6000FR-IPKey features: •Detection of people with elevated temperatures •Non-contact body temperature measurement using infrared •Content analysis based on Deep Learning •Configuration of the door unlocking mode •Human-sounding voice prompt •Web-server •Detection of people not wearing masks •Measuring accuracy up to +/- 0,3°C •Alarm Outputs •Data storage on SD card •8-inch LCD touch screen •Two-way audio OPERATING SYSTEM OS Embedded LINUX Configuration Via touch screen, via web-browser DISPLAY Display Screen 8-inch LCD touch screen Resolution 1280x800 Contrast 500:1 TEMPERATURE MEASUREMENT Measurement range 32~43⁰C Measurement accuracy ± 0.3 ⁰C Measurement distance 0.25~0.75m BUILT-IN CAMERA Sensor 2 MPX, 1/2.8” Lens Dual-lens, f=3.97mm/F1.6 WDR 120db FACE RECOGNITION Height range of face recognition 1.2~2.2m (the recommended installation height is 1.35~1.5m) Face recognition distance 0.3~2m Face recognition duration ≤ 0.5 s per person Face capacity 20 000 Face recognition accuracy 99.7% SUPPLEMENTARY LIGHT Built-in Soft white light, IR light Light distance 1~3m AUDIO Two-way talk Yes (noise reduction and echo cancellation) Audio Input Built-in microphone Audio Output Built-in speaker INTERFACE Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Alarm Input 2 „Exit button” Input 1 Alarm Output 2 Door lock Output relay type, NO/NC (option), adjustable delay and duration Wiegand Interface Input / Output (26/34) RS-485 1 (half duplex) SD card Interface 1 x microSD, up to 128GB USB Interface 1 Ani-Tamper Interface 1 RESET button 1 OTHERS PARAMETERS Power Supply 12 VDC Power Management Screen Sleep, Screen Protection Power Consumption 12W Weight 1.2kg Installation Wall mounting (bracket included) Protection Surge Protection Operating Temperature 0⁰C~40⁰C, 95% humidity (non-condensing) Dimensions (mm) 302 x 138.5 x 34 |
1950 |
|
NOVUS

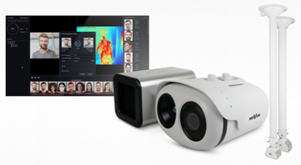

PROFESSIONAL SYSTEM FOR REMOTE BODY TEMPERATURE MEASUREMENT |

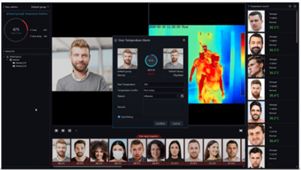

Professional system for remote body temperature measurement with mask detection function NVIP-2H-8912M/TSSET 1 x IP camera with body temperature measuring feature NVIP-2H-8912M/TS 1 x Black body calibration unit NV-BBU 1 x N Control 8000 software 1 x ceiling mount NVB-BRTS1 (for the camera) 1 x ceiling mount NVB-BRTS2 (for the calibration unit) Important features: up to 16 people simultaneous measurement within less than 1 detection of people not wearing masks measuring accuracy up to +/- 0,3 ° C reducing number of false alarms thanks to VCA - camera measure temperature only in area when face is detected measured temperature value is assigned to specific person, captured image and temperature value are both stored in a database in order to carry out further analysis Camera specification is available here: NVIP-2H-8912M/TS Black body calibration unit specification is available here: NV-BBU FUNCTIONALITIES Rapid detection of people with elevated temperatures Novus TS (Temperature Scan) uses a face detection algorithm in the image to measure temperature only within the face ignoring other objects in the background that can cause false alarms in competing systems without this functionality. The ability to measure 16 faces simultaneously in less than 1 second makes the system as one of the few can be used to scan the temperature of people without barriers to reduce the movement through various types of gates and without having to stop. Face mask detection Face mask detection function is realized by N Control 8000 software, it allows for trigger local sound alarm and pop up message on operator panel. |
19950 |
