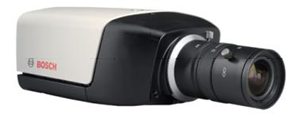

BOSCH CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT
NBC-255-P
Made in Germany
|
CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT - BOSCH NBC-225-P
Sensitivity 1.0 lx
Video resolution VGA, QVGA
M-JPEG Frame rate 30/25 fps:
Lens type NBC-255-P: Varifocal 2.8 to 10 mm, F1.4
Board mounted Connection Alarm input +9 to 30 VDC
Relay out 24 VAC/VDC, 1 A
Audio input Built-in microphone / Line in jack connector
Storage Memory card slot Supports up to 32 GB SD/SDHC card
BOSCH CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT NBC-255-P Features Complete network video surveillance system Sharp images of moving objects Dual H.264 and M-JPEG streams simultaneously ONVIF conformant SD/SDHC card slot for edge recording Power Input voltage +12 VDC or Power-over-Ethernet Power consumption 3.36 W (max) Video Sensor type ¼-inch CMOS Sensor pixels 640 x 480 Sensitivity 1.0 lx Video resolution VGA, QVGA Video compression H.264 MP (Main Profile); H.264 BP+ (Baseline Profile Plus); M-JPEG Frame rate 30/25 fps: all resolutions Lens Lens type NBC-255-P: Varifocal 2.8 to 10 mm, F1.4 to close NBC-225-P: Fixed 4.9 mm, F2.8 Lens mount NBC-255-P: CS mount NBC-225-P: Board mounted Connection Alarm input +9 to 30 VDC Relay out 24 VAC/VDC, 1 A Audio Audio input Built-in microphone Line in jack connector Audio output Line out jack connector Audio communication Two-way, full duplex Audio compression G.711 Local Storage Memory card slot Supports up to 32 GB SD/SDHC card Recording Continuous recording, ring recording. alarm/events/ schedule recording Software Control Unit configuration Via web browser or PC surveillance software Network Protocols HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP, RTCP, IGMPv2/v3, SMTP, FTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45 PoE IEEE 802.3af compliant Mechanical Dimensions with lens (H x W x D) NBC-255-P: 55 x 72 x 178 mm (2.17 x 2.83 x 7.01 in.) NBC-225-P: 55 x 72 x 123 mm (2.18 x 2.83 x 4.84 in.) Weight (with lens) NBC-255-P: approx. 245 g (0.54 lb) NBC-225-P: approx. 177 g (0.39 lb) Mounting ¼-inch mounting socket on top and bottom
|
90 |
|

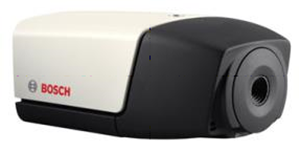

BOSCH CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT
NBC-225-P
Made in Germany
|
CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT - BOSCH NBC-225-P
Sensitivity 1.0 lx
Video resolution VGA, QVGA
M-JPEG Frame rate 30/25 fps:
Lens type NBC-225-P: Fixed 4.9 mm, F2.8
Board mounted Connection Alarm input +9 to 30 VDC
Relay out 24 VAC/VDC, 1 A
Audio input Built-in microphone / Line in jack connector
Storage Memory card slot Supports up to 32 GB SD/SDHC card
Features Complete network video surveillance system Sharp images of moving objects Dual H.264 and M-JPEG streams simultaneously ONVIF conformant SD/SDHC card slot for edge recording Power Input voltage +12 VDC or Power-over-Ethernet Power consumption 3.36 W (max) Video Sensor type ¼-inch CMOS Sensor pixels 640 x 480 Sensitivity 1.0 lx Video resolution VGA, QVGA Video compression H.264 MP (Main Profile); H.264 BP+ (Baseline Profile Plus); M-JPEG Frame rate 30/25 fps: all resolutions Lens Lens type NBC-255-P: Varifocal 2.8 to 10 mm, F1.4 to close NBC-225-P: Fixed 4.9 mm, F2.8 Lens mount NBC-255-P: CS mount NBC-225-P: Board mounted Connection Alarm input +9 to 30 VDC Relay out 24 VAC/VDC, 1 A Audio Audio input Built-in microphone Line in jack connector Audio output Line out jack connector Audio communication Two-way, full duplex Audio compression G.711 Local Storage Memory card slot Supports up to 32 GB SD/SDHC card Recording Continuous recording, ring recording. alarm/events/ schedule recording Software Control Unit configuration Via web browser or PC surveillance software Network Protocols HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP, RTCP, IGMPv2/v3, SMTP, FTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45 PoE IEEE 802.3af compliant Mechanical Dimensions with lens (H x W x D) NBC-255-P: 55 x 72 x 178 mm (2.17 x 2.83 x 7.01 in.) NBC-225-P: 55 x 72 x 123 mm (2.18 x 2.83 x 4.84 in.) Weight (with lens) NBC-255-P: approx. 245 g (0.54 lb) NBC-225-P: approx. 177 g (0.39 lb) Mounting ¼-inch mounting socket on top and bottom
|
90 |
|
BOSCH IP DOME CAMERA WITH MEMORY CARD SUPPORT
NDC-255-P
Made in Germany
|
IP DOME CAMERA WITH MEMORY CARD SUPPORT - BOSCH NDC-255-P
Sensitivity 0.3 lx
Video resolution VGA, QVGA
M-JPEG Frame rate 30/25 fps:
Lens type Varifocal 2.8 to 10 mm, DC Iris F1.2
Board mounted Connection Alarm input Short or DC 5V activation
Relay out Input rating Maximum 1 A 24 VAC/VDC
Audio input Built-in microphone / Line in jack connector
Storage Memory card slot Supports up to 32 GB SD/SDHC card
BOSCH IP DOME CAMERA WITH MEMORY CARD SUPPORT NDC-255-P Complete network video surveillance system*Sharp images of moving objects*Dual H.264 and M-JPEG streams simultaneously*ONVIF conformant*MicroSD/SDHC card slot for edge recording**Power*Input voltage +12 VDC or*Power-over-Ethernet*Power consumption 4.1 W (max)*Video*Sensor type ¼-inch CMOS*Sensor pixels 640 x 480*Sensitivity 0.3 lux*Video resolution VGA, QVGA*Video compression H.264 MP (Main Profile); H.264 BP+ (Baseline Profile Plus); M-JPEG*Frame rate 30/25 fps: all resolutions*Lens*Lens type NDC-255-P: Varifocal 2.8 to 10 mm, DC Iris F1.2 to*close*NDC-225-P: Fixed 4 mm, F1.5*Lens mount Board mounted*Connection*Analog video out 2.5 mm jack for installation only*Alarm input Short or DC 5V activation*Relay out Input rating Maximum 1 A 24 VAC/VDC*Audio*Audio input Built-in microphone*Line in jack connector*Audio output Line out jack connector*Audio communication Two-way, full duplex*Audio compression G.711*Local Storage*Memory card slot Supports up to 32 GB microSD/SDHC card*Recording Continuous recording, ring recording. alarm/events/*schedule recording*Software Control*Unit configuration Via web browser or PC surveillance software*Network*Protocols HTTP, HTTPs, SSL, TCP, UDP, ICMP, RTSP, RTP,*RTCP, IGMPv2/v3, SMTP, POP3, FTP, DHCP client,*ARP, DNS, DDNS, NTP, SNMP, UPnP*Ethernet 10/100 Base-T, auto-sensing, half/full duplex, RJ45*PoE IEEE 802.3af compliant*Mechanical*Dimensions Diameter: 135 mm (5.32 in)*Height: 102 mm (4 in)*Weight NDC-255-P: 548 g (1.21 lb) approx.*NDC-225-P: 523 g (1.16 lb) approx*Environmental*Operating temperature*Camera -10 ºC to +50 ºC (14 ºF to +122 ºF)*Operating temperature*Power Supply 0 ºC to +40 ºC (+32 ºF to +104 ºF)*
|
110
|
|

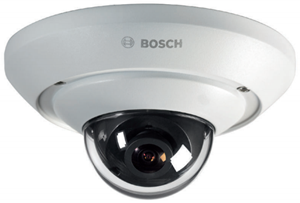

BOSCH FLEXIDOME IP micro 5000 CAMERA
IP micro 500051-F4
Made in Germany
|
FLEXIDOME BOSCH IP micro 5000 CAMERA 500051-F4
Video resolution 1080p and 5MPx resolutions
Electronic Day/Night Auto, Color, Monochrome Shutter speed
Automatic Electronic Shutter (AES)
M-JPEG Frame rate 30/25 fps:
Lens type 3.6 mm fixed, F1.6
Board mounted Connection Alarm input Short or DC 5V activation
Relay out Input rating Maximum 1 A 24 VAC/VDC
Audio input Built-in microphone / Line in jack connector
Storage Memory card slot Supports up to 32 GB SD/SDHC card
BOSCH FLEXIDOME IP micro 5000 CAMERA IP micro 500051-F4 Compact and stylish outdoor microdome 1080p and 5MP resolutions Regions of interest and E-PTZ Motion and tamper detection FTP, Dropbox and e-mail alarms The HD 1080p and 5MP vandal-resistant microdome cameras from Bosch are professional surveillance cameras that provide high quality HD and MP images for demanding security and surveillance network requirements. The camera comes with a choice of lenses including an ultra-wide angle lens which provides outstanding performance without the need for de-warping software. The cameras are available in 1080p and 5MP versions and there is a special version designed for Interior Vehicle Mounting (IVM) using an M12 connector. Video Sensor type 1/2.7-inch CMOS (1080p) 1/3-inch CMOS (5MP) Sensor pixels 1920 x 1080 (1080p) 2592 x 1944 (5MP) 1080p Sensitivity (3200 K, reflectivity 89%, 30IRE) 0.4 lx (3.6 mm F1.6 lens) 1.0 lx (2.5 mm F2.8 lens) 5MP Sensitivity (3200 K, reflectivity 89%, 30IRE) 0.8 lx (3.6 mm F1.6 lens) 2.0 lx (2.5 mm F2.8 lens) Dynamic range 76 dB (1080p) 65 dB (5MP) Electronic Day/Night Auto, Color, Monochrome Shutter speed Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/15000 for 1080p) Fixed (1/12 to 1/15000 for 5MP) Video resolution 1080p, 720p, 480p, 432p, 240p, 288p, 144p (1080p version) 5 Megapixels, 480p (5MP version) Aspect ratio 16:9 (1080p) 4:3 (5MP) Video compression H.264 MP (Main Profile); M-JPEG Max. frame rate 30 ips (1080p) 12 ips (5MP) (M-JPEG frame rate can vary depending on system loading) Video Settings Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, White balance, Sharpness level, Contrast enhancement, Backlight Compensation, Privacy Mask, Motion detection, Tamper alarm, Upright mode, Pixel counter Lens Lens type 3.6 mm fixed, F1.6 (NUC-51022-F4, NUC-51051-F4) 2.5 mm fixed, F2.8 (NUC-51022-F2, NUC-51051-F2)
|
511 |
|

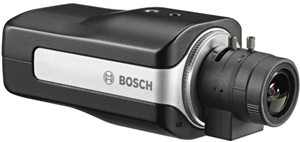

BOSCH DINION IP 5000 HD CAMERA
NBN-50022-V3-IP
Made in Germany
|
BOSCH DINION IP HD CAMERA 5000 NBN-50022-V3-IP
Video resolution 1080p HD 2MPx resolutions
Electronic Day/Night Auto, Color 0.25 lx • Mono 0.05 lx
Automatic Electronic Shutter (AES)
M-JPEG Frame rate 30/25 fps:
Lens type 2.7-15 mm fixed, WDR, F1.6
Storage Memory card slot Supports up to 128 GB SD/SDHC card
This camera brings Bosch’s high-performance technology into
the realm of homes, small office and retail businesses by
offering a cost-effective solution for a broad range of
applications.
Power Power Supply 12 VDC / Power-over-Ethernet 48 VDC nominal
BOSCH DINION IP 5000 HD CAMERA NBN-50022-V3-IP Stylish indoor network camera 1080p resolution for sharp images Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50% SD card slot for local recording FTP, Dropbox and e-mail alarms The 1080p HD indoor camera is a ready-to-use, complete network video surveillance system inside a compact and stylish housing. This camera brings Bosch’s high-performance technology into the realm of homes, small office and retail businesses by offering a cost-effective solution for a broad range of applications. System overview Power Power Supply 12 VDC Power-over-Ethernet 48 VDC nominal Current Consumption 300 mA (12 VDC) 75 mA (PoE 48 VDC) Power Consumption 3.6 W PoE IEEE 802.3af (802.3at Type 1) Power level: Class 1 Sensor Sensor type 1/2.7‑inch CMOS Total sensor pixels 1952 x 1092 (2MP) Video performance Sensitivity – (3200K, reflectivity 89%, F1.4, 30IRE) • Color 0.25 lx • Mono 0.05 lx Dynamic range 76 dB Wide Dynamic Range (WDR) Video streaming Video compression H.264 (MP); M- JPEG Streaming Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) Overall IP Delay Min. 120 ms, Max. 340 ms GOP structure IP, IBP, IBBP Encoding interval 1 to 25 [30] ips Video resolution (H x V) • 1080p HD 1920 X 1080 • 720p HD 1280 x 720 • D1 4:3 (cropped) 704 x 480 Video resolution (H x V) • SD upright (cropped) 400 x 720 • 480p SD Encoding: 704 x 480; Displayed: 854 x 480 • 432p SD 768 x 432 • 288p SD 512 x 288 • 240p SD Encoding: 352 x 240; Displayed: 432 x 240 • 144p SD 256 x 144 Video functions Day/Night Color, Monochrome, Auto Adjustable picture settings Contrast, Saturation, Brightness White Balance 3 automatic modes, manual mode and measure Shutter Automatic Electronic Shutter (AES) Fixed shutter (1/25[30] to 1/15000) selectable Default shutter Backlight compensation On/off Noise reduction Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments Contrast enhancement On/off Sharpness Sharpness enhancement level selectable Intelligent defog Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) Privacy Masking Four independent areas, fully programmable Video Analysis MOTION+ Other functions Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Scene modes Audio streaming Audio Streaming Full duplex / half duplex Signal-to-noise ratio > 50 dB Audio compression AAC-LC, G.711, L16 (live and recording)
|
587
|
|
NOVUS

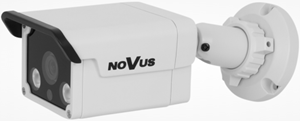

BULLET IP CAMERA
NVIP-1DN5001H/IRH-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-1DN5001H/IRH-1P
Video resolution 1.3 MPX CMOS sensor 1/3” APTINA
Number of Effective Pixels/ 1280 (H) x 960 (V)
Sensitivity 0 Lux (IR On)
Lens type fixed focal, f=3.6 mm/F2.2
DAY/NIGHT Switching Type/ mechanical IR cut filter
IR LED Number/ 2 Range/ 15 m Angle/ 90°
Degree of Protection/ IP 66
Power Supply/ PoE, 12 VDC
Operating Temperature/ -40°C ~ 55°C
Built-in Heater - yes / Fan - no!
NOVUS BULLET IP CAMERA NVIP-1DN5001H/IRH-1P Image Sensor/ 1.3 MPX CMOS sensor 1/3” APTINA Number of Effective Pixels/ 1280 (H) x 960 (V) Min. Illumination/ 0.67 lx/F2.2 - color mode, 0.034 lx/F2.2 - color mode (DSS), 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/5 s ~ 1/50000 s Digital Slow Shutter (DSS)/ up to 1/5 s Digital Noise Reduction (DNR)/ 3D LENS Lens Type/ fixed focal, f=3.6 mm/F2.2 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Delay/ 0 ~ 180 s Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 1280 x 960, 1280 x 720 (HD), 720 x 576 (D1), 640 x 480 (VGA), 640 x 360, 352 x 288 (CIF), 320 x 240 (QVGA) Frame Rate/ 30 fps for each resolution Multistreaming Mode/ 2 streams Video/Audio Compression/ H.264, MJPEG/- Number of Simultaneous Connections/ max. 10 Bandwidth/ 3.5 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, IPv4/v6, FTP, DHCP, DNS, 3GPP, SMTP ONVIF Protocol Support/ Profile S (ONVIF2.2) Camera Configuration/ from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish, English, Russian Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 5 Motion Detection/ yes Image Processing/ 180˚ image rotation, mirror effect Prealarm/Postalarm/ up to 5 MB/up to 86400 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving file on NAS server IR LED LED Number/ 2 Range/ 15 m Angle/ 90° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 70 (W) x 63 (H) x 169 (L) Weight/ 0.473 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included Power Supply/ PoE, 12 VDC Power Consumption/ 3.5 W, 6 W (IR on), 6.5 W (heater on), 8.5 W (IR and heater on) Operating Temperature/ -40°C ~ 55°C Built-in Heater/Fan/ yes/no
|
99 |
|
NOVUS NEW
CUBE IP CAMERA
NVIP-2Q-4201/PIR/W
Made in POLAND
|
NOVUS CUBE IP CAMERA NVIP-2Q-4201/PIR/W
Resolution: 2 MPX
access to the camera via the Internet
thanks to P2P connectivity
Lens: fixed focal, f=2.8 mm/F1.85
D/N function - IR cut filter
reduction of false alarms - PIR detector
microSD card support = 128Gb
two-way audio
Min. Illumination: 0.1 lx (0 lx, IR on)
IR LED, range up to 10 m
NOVUS CUBE IP CAMERA NVIP-2Q-4201/PIR/W Image Sensor: 2 MPX CMOS sensor 1/2.7” Galaxycore Number of Effective Pixels: 1920 (H) x 1080 (V) Min. Illumination: 0.1 lx/F2.0 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter: auto/manual: 1/5 s ~ 1/200000 s Digital Slow Shutter (DSS): up to 1/5 s Wide Dynamic Range (WDR): yes Digital Noise Reduction (DNR): 3D Defog Function (F-DNR): yes Highlight Compensation (HLC): yes Back Light Compensation (BLC): yes LENS Lens Type: fixed focal, f=2.8 mm/F1.85 DAY/NIGHT Switching Type: mechanical IR cut filter Switching Mode: auto, manual Switching Delay: 1 ~ 36 s Switching Schedule: yes Visible Light Sensor: yes NETWORK Stream Resolution: 1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate: 20 fps for each resolution Multistreaming Mode: 2 streams Video/Audio Compression: H.264, H.265/G.711 Number of Simultaneous Connections: max. 4 Bandwidth: 8 Mb/s in total Network Protocols Support: HTTP, TCP/IP, IPv4, DHCP, DNS, DDNS, NTP, RTSP, RTP, P2P ONVIF Protocol Support: Profile S Camera Configuration: from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software: NMS Mobile applications: RxCamView (iPhone, Android) WIFI Network standard: IEEE802.11b, g, n Band: 2.4GHz Security: WEP, WPA-PSK/WPA2-PSK Transmission range: up to 50 m Antenna: built-in, omnidirectional OTHER FUNCTIONS Privacy Zones: 4 Motion Detection: yes PIR detector: range up to 7 m Audio Detection: yes Image Processing: 180˚ image rotation, vertical flip, horizontal flip Prealarm/Postalarm: up to 5 s/up to 300 s System Reaction to Alarm Events: saving file on SD card, alarm output activation Determent: high power white LED, acoustic signaling device Restoring default settings: via web browser, using reset button IR LED LED Number: 12 Range: 10 m Angle: 120° Smart IR: yes (software support) INTERFACES Audio Input/Output: built-in microphone/speaker Alarm Input/Output: 1 (NO/NC)/1 relay type Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Wireless (WiFi) Memory Card Slot: microSD - capacity up to 128GB INSTALLATION PARAMETERS Dimensions (mm): 63 (W) x 106 (H) x 33 (L) with bracket: 75 (W) x 120 (H) x 33 (L) Weight: 0.2 kg Enclosure: plastic, black and white, wall mount/base in-set included Power Supply: PoE, 12 VDC Surge protection: TVS 4000 V Power Consumption: 2 W, 3 W (IR on) Operating Temperature: -10°C ~ 45°C Humidity: max. 95%, relative (non-condensing)
|
122 |
|
NOVUS
VANDAL PROOF IP CAMERA
NVIP-1DN3000V/IR-1P-II
Made in POLAND
|
NOVUS VANDAL PROOF IP CAMERA NVIP-1DN3000V/IR-1P-II
Video resolution 1.3 MPX CMOS sensor 1/3” APTINA
Number of Effective Pixels/ 1280 (H) x 960 (V)
Sensitivity 0 Lux (IR On)
Lens type fixed focal, f=3.6 mm/F1.8
DAY/NIGHT Switching Type/ mechanical IR cut filter
IR LED Number/ 30 Range/ 15 m Angle/ 90°
Degree of Protection/ IP 66
Power Supply/ PoE, 12 VDC
Operating Temperature/ -40°C ~ 50°C
Built-in Heater - no / Fan - no
NOVUS VANDAL PROOF IP CAMERA NVIP-1DN3000V/IR-1P-II Image Sensor/ 1.3 MPX CMOS sensor 1/3” APTINA Number of Effective Pixels/ 1280 (H) x 960 (V) Min. Illumination/ 0.02 lx/F1.8 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1 s ~ 1/100000 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 3D Defog Function (F-DNR)/ yes LENS Lens Type/ fixed focal, f=3.6 mm/F1.8 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 1280 x 960, 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 30 fps for each resolution Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, MJPEG/- Number of Simultaneous Connections/ max. 4 Bandwidth/ 11 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.3) Camera Configuration/ from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Image Processing/ 180˚ image rotation, sharpening, mirror effect Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 30 Range/ 15 m Angle/ 90° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ 130 (Ф) x 109 (H) Weight/ 0.73 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof aluminium, white Power Supply/ PoE, 12 VDC Power Consumption/ 3.6 W, 7 W (IR on) Operating Temperature/ -40°C ~ 50°C
|
124 |
|

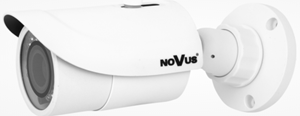

NOVUS
BULLET IP CAMERA
NVIP-3DN3012H/IR-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-3DN3012H/IR-1P
Video resolution 3 MPX CMOS sensor 1/3” APTINA
Number of Effective Pixels:
15 fps for 2048(H) x 1536(V)
30 fps for 1920 x 1080 (Full HD)
Sensitivity Min.0,11 lx-color mode,0 lx(IR on)-B/W mode
Lens Type/varifocal, f=2.8 ~ 12 mm/F1.4
DAY/NIGHT Switching Type/ mechanical IR cut filter
IR LED Number/ 36 Range/ 20 m Angle/ 90°
Degree of Protection/ IP 66
Bandwidth/ 40 Mb/s in total
Power Supply/ PoE, 12 VDC
Operating Temperature/ -40°C ~ 50°C
Built-in Heater - no / Fan - no
NOVUS BULLET IP CAMERA NVIP-3DN3012H/IR-1P Image Sensor/ 3 MPX CMOS sensor 1/3” APTINA Number of Effective Pixels/ 2048 (H) x 1536 (V) Min. Illumination/ 0.11 lx/F1.4 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1 s ~ 1/100000 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ yes Defog Function (F-DNR)/ no LENS Lens Type/ varifocal, f=2.8 ~ 12 mm/F1.4 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA), 176 x 144 (QCIF) Frame Rate/ 15 fps for 2048 x 1536 (QXGA), 30 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, MJPEG/G.711 Number of Simultaneous Connections/ max. 10 Bandwidth/ 40 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.3) Camera Configuration/ from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Image Processing/ 180˚ image rotation, sharpening, mirror effect Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 36 Range/ 20 m Angle/ 90° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 87 (Ф) x 219 (L) Weight/ 0.6 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included Power Supply/ PoE, 12 VDC Power Consumption/ 3.6 W, 7 W (IR on) Operating Temperature/ -40°C ~ 50°C
|
340 |
|
NOVUS

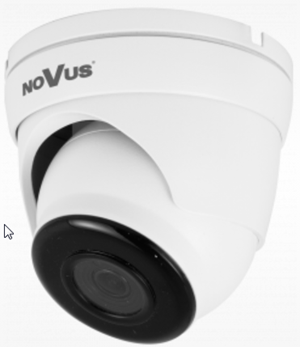

VANDAL PROOF IP CAMERA
NVIP-4DN2001V/IR-1P-II
Made in POLAND
|
NOVUS VANDAL PROOF IP CAMERA NVIP-4DN2001V/IR-1P-II
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.07 lx/F2.1 color mode
Lens type fixed focal, f=2.8 mm / F2.1
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 18 Range/ 30 m Angle/ 90°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -35°C ~ 60°C
Humidity: max. 95%, relative (non-condensing)
Built-in: Heater - no / Fan - no
NOVUS VANDAL PROOF IP CAMERA NVIP-4DN2001V/IR-1P-II Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.07 lx/F2.1 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/5 s ~ 1/20000 s Digital Slow Shutter (DSS)/ up to 1/5 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 90dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes LENS Lens Type/ fixed focal, f=2.8 mm/F2.1 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Switching Delay/ 1 ~ 36 s Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2304 x 1296, 2048 x 1520, 1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 20 fps for 2592 x 1520, 30 fps for 2048 x 1520 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265/- Number of Simultaneous Connections/ max. 10 Bandwidth/ 63 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, UPnP, SMTP, P2P ONVIF Protocol Support/ Profile S (ONVIF 2.6) Camera Configuration/ from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software/ NMS Mobile applications/ RxCamView (iPhone, Android) OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 8 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, object counting, face detection, pedestrian detection Image Processing/ 180˚ image rotation, corridor mode, vertical flip, horizontal flip System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving in the cloud storage IR LED LED Number/ 18 Range/ 30 m Angle/ 90° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ 100 (Ф) x 90 (H) Weight/ 0.43 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof aluminium, white Power Supply/ PoE, 12 VDC Power Consumption/ 2 W, 5 W (IR on) Operating Temperature/ -35°C ~ 60°C Humidity/ max. 95%, relative (non-condensing)
|
221 |
|
NOVUS

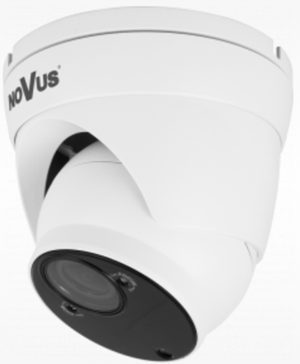

VANDAL PROOF IP CAMERA
NVIP-4DN2002V/IR-1P-II
Made in POLAND
|
NOVUS VANDAL PROOF IP CAMERA NVIP-4DN2002V/IR-1P-II
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.06 lx/F1.3 color mode
Lens type variofocal, f=2.7 ~ 13.5 mm/F1.3
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 40 Range/ 40 m Angle/ 120°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -35°C ~ 60°C
NOVUS VANDAL PROOF IP CAMERA NVIP-4DN2002V/IR-1P-II Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.06 lx/F1.3 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/5 s ~ 1/20000 s Digital Slow Shutter (DSS)/ up to 1/5 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 90dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ varifocal, f=2.7 ~ 13.5 mm/F1.3 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Switching Delay/ 1 ~ 36 s Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2304 x 1296, 2048 x 1520, 1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 20 fps for 2592 x 1520, 30 fps for 2048 x 1520 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265/- Number of Simultaneous Connections/ max. 10 Bandwidth/ 63 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, UPnP, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.6) Camera Configuration/ from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software/ NMS Mobile applications/ RxCamView (iPhone, Android) OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 8 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, face detection, pedestrian detection, cross counting Image Processing/ 180˚ image rotation, corridor mode, vertical flip, horizontal flip System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 40 Range/ 40 m Angle/ 120° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ 135 (Ф) x 128 (H) Weight/ 0.7 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof aluminium, white Power Supply/ PoE, 12 VDC Surge protection/ TVS 4000 V Power Consumption/ 2 W, 6 W (IR on) Operating Temperature/ -35°C ~ 60°C
|
222 |
|
NOVUS

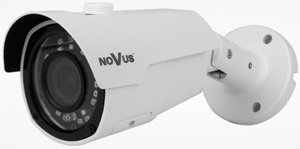

BULLET IP CAMERA
NVIP-4DN2002H/IR-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-4DN2002H/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.07 lx/F1.4 color mode
Lens type variofocal, f=2.8 ~ 12 mm/F1.4
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 30 Range/ 40 m Angle/ 120°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -35°C ~ 60°C
NOVUS BULLET IP CAMERA NVIP-4DN2002H/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.07 lx/F1.4 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/5 s ~ 1/20000 s Digital Slow Shutter (DSS)/ up to 1/5 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 90dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes LENS Lens Type/ varifocal, f=2.8 ~ 12 mm/F1.4 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Switching Delay/ 1 ~ 36 s Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2304 x 1296, 2048 x 1520, 1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 20 fps for 2592 x 1520, 30 fps for 2048 x 1520 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265/- Number of Simultaneous Connections/ max. 10 Bandwidth/ 63 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, UPnP, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.6) Camera Configuration/ from Internet Explorer, Firefox browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 8 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, object counting, face detection, pedestrian detection Image Processing/ 180˚ image rotation, corridor mode, vertical flip, horizontal flip System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 30 Range/ 40 m Angle/ 120° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 84 (Ф) x 232 (L) Weight/ 0.7 kg Degree of Protection/ IP 66 (details in the user’s manual) Power Supply/ PoE, 12 VDC Power Consumption/ 2 W, 8 W (IR on) Operating Temperature/ -35°C ~ 60°C
|
228
|
|
NOVUS NEW
SPECIAL PURPOSE IP CAMERA
NVIP-2ATM-4401
Made in POLAND
|
NOVUS SPECIAL PURPOSE IP CAMERA
NVIP-2ATM-4401
Resolution: 2 MPX
Lens: pinhole, f=2 mm/F2.8
Video content analysis
two-way audio
Min. Illumination from 0.1 lx
NOVUS SPECIAL PURPOSE IP CAMERA NVIP-2ATM-4401 Image Sensor: 2 MPX CMOS sensor 1/2.8” SONY STARVIS Number of Effective Pixels: 1945 (H) x 1097 (V) Min. Illumination: 0.1 lx/F2.8 - color mode S/N Ratio: > 50 dB (AGC off) Electronic Shutter: auto/manual: 1/5 s ~ 1/20000 s Wide Dynamic Range (WDR): yes (double scan sensor), 120dB Digital Noise Reduction (DNR): 3D Defog Function (F-DNR): yes LENS Lens Type: pinhole, f=2 mm/F2.8 DAY/NIGHT Switching Mode: manual, time NETWORK Stream Resolution: 1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate: 25 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode: 3 streams Video/Audio Compression: H.264, H.265/G.711, G.726, ADPCM Number of Simultaneous Connections: max. 15 Bandwidth: 24 Mb/s in total Network Protocols Support: HTTP, TCP/IP, IPv4, UDP, HTTPS, Multicast, FTP, DHCP, DNS, NTP, RTSP, RTP, UPnP, PPPoE, SMTP, P2P ONVIF Protocol Support: Profile S (ONVIF 2.6) Camera Configuration: from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software: NMS Mobile applications: RxCamView (iPhone, Android) OTHER FUNCTIONS Privacy Zones: 4 Motion Detection: yes Region of interest (ROI): 8 Video Content Analysis (VCA): abandoned object, object disappearance, line cross, zone entrance Image Processing: 180˚ image rotation, corridor mode, vertical flip, horizontal flip System Reaction to Alarm Events: e-mail with attachment, saving file on FTP server, saving in the cloud storage INTERFACES Audio Input/Output: 1 x RCA/1 x RCA Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm): 38 (W) x 38 (H) x 29 (L) - sensor module Weight: 0.11 kg Power Supply: PoE, 12 VDC Power Consumption: 2 W Operating Temperature: -30°C ~ +55°C Humidity: max. 95%, relative (non-condensing)
|
230
|
|
NOVUS NEW
IP CAMERA WITH VIDEO CONTENT ANALYSIS BASED ON DEEP LEARNING
NVIP-4H-6511/F
Made in POLAND
|
NOVUS IP CAMERA WITH VIDEO ANALYSIS
NVIP-4H-6511/F
Resolution: 4 MPX
Lens: fixed focal, f=2.8 mm/F1.6
Human/Vehicle Object Classification
D/N function - IR cut filter
Video content analysis based on Deep Learning
microSD card support
WDR with double scan sensor
Min. Illumination: 0.005 lx (0 lx, IR on)
IR LED, range up to 50 m
NOVUS IP CAMERA WITH VIDEO ANALYSIS NVIP-4H-6511/F
Image Sensor: 4 MPX CMOS sensor 1/3” SmartSens Number of Effective Pixels: 2592 (H) x 1520 (V) Min. Illumination: 0.005 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter: auto/manual: 1/3 s ~ 1/100000 s Digital Slow Shutter (DSS): up to 1/3 s Wide Dynamic Range (WDR): yes (double scan sensor), 120dB Digital Noise Reduction (DNR): 2D, 3D Defog Function (F-DNR): yes Highlight Compensation (HLC): yes Back Light Compensation (BLC): yes Reduction of image flicker (Antiflicker): yes LENS/Lens Type: fixed focal, f=2.8 mm/F1.6 DAY/NIGHT/Switching Type: mechanical IR cut filter Switching Mode: auto, manual, time Switching Level Adjustment: yes Switching Delay: 2 ~ 120 s Switching Schedule: yes Visible Light Sensor: yes NETWORK/Stream Resolution: 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x 240 (QVGA) Frame Rate: 30 fps for 2592 x 1520, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode: 3 streams Video/Audio Compression: H.264, H.264+, H.264 Smart, H.265, H.265+, H.265 Smart, MJPEG/G.711 Number of Simultaneous Connections: max. 10 Bandwidth: 60 Mb/s in total Network Protocols Support: HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, UPnP, SNMP, QoS/DSCP, IEEE 802.1X, PPPoE, SMTP, ICMP, Unicast, SSL/TLS ONVIF Protocol Support: Profile S/G Camera Configuration: from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software: NMS, NVR-6000 Viewer Mobile applications: SuperLive Plus (iPhone, Android) OTHER FUNCTIONS/Privacy Zones: 4 video mask type: single color or 1 video mask type: mosaic Motion Detection: yes Region of interest (ROI): 8 Video Content Analysis (VCA): tamper, abandoned object, object disappearance, line cross, zone entrance, zone exit, object counting, face detection, detection of people not wearing masks, pedestrian detection, cross counting, Scene Change, Video Blurred, Video Color Cast, objects distinguishing, people counting, vehicle detection, vehicle counting Image Processing: 180˚ image rotation, sharpening, mirror effect, corridor mode, vertical flip, horizontal flip, lens distortion correction Prealarm/Postalarm: up to 6 s/up to 120 s System Reaction to Alarm Events: e-mail, e-mail with attachment, saving file on FTP server, saving file on SD card Restoring default settings: via web browser, using reset button, via NMS IPTool software IR LED/LED Number: 2 Range: 50 m Smart IR: yes (software support) INTERFACES/Audio Input/Output: 1 x Jack (3.5 mm)/- Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot: microSD - capacity up to 128GB INSTALLATION PARAMETERS/Dimensions (mm): with bracket: 81 (W) x 81 (H) x 220 (L) Weight: 0.7 kg Degree of Protection: IP 67 (details in the user’s manual) Enclosure: aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply: PoE, 12 VDC Surge protection: TVS 4000 V Power Consumption: 6 W, 10 W (IR on) Operating Temperature: -30°C ~ 60°C Humidity: max. 95%, relative (non-condensing)
|
355
|
|
NOVUS NEW
IP MOTOR-ZOOM CAMERA WITH VIDEO CONTENT ANALYSIS BASED ON DEEP LEARNING
NVIP-4H-6502M/F
Made in POLAND
|
NOVUS IP MOTOR-ZOOM CAMERA WITH VIDEO ANALYSIS
NVIP-4H-6502M/F
Resolution: 4 MPX
Lens: motorized, auto-iris and auto-focus
function, f=2.8 ~ 12 mm/F1.4
Human/Vehicle Object Classification
D/N function - IR cut filter
Video content analysis based on Deep Learning
microSD card support
WDR with double scan sensor
Min. Illumination: 0.004 lx (0 lx, IR on)
IR LED, range up to 50 m
NOVUS IP MOTOR-ZOOM CAMERA WITH VIDEO ANALYSIS NVIP-4H-6502M/F
Image Sensor: 4 MPX CMOS sensor 1/3” SmartSens Number of Effective Pixels: 2592 (H) x 1520 (V) Min. Illumination: 0.004 lx/F1.4 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter: auto/manual: 1/3 s ~ 1/100000 s Digital Slow Shutter (DSS): up to 1/3 s Wide Dynamic Range (WDR): yes (double scan sensor), 120dB Digital Noise Reduction (DNR): 2D, 3D Defog Function (F-DNR): yes Highlight Compensation (HLC): yes Back Light Compensation (BLC): yes Reduction of image flicker (Antiflicker): yes LENS Lens Type: motorized, auto-iris function, f=2.8 ~ 12 mm/F1.4 Auto-focus: zoom trigger, day/night mode trigger, manual trigger DAY/NIGHT Switching Type: mechanical IR cut filter Switching Mode: auto, manual, time Switching Level Adjustment: yes Switching Delay: 2 ~ 120 s Switching Schedule: yes Visible Light Sensor: yes NETWORK Stream Resolution: 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x 240 (QVGA) Frame Rate: 30 fps for 2592 x 1520, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode: 3 streams Video/Audio Compression: H.264, H.264+, H.264 Smart, H.265, H.265+, H.265 Smart, MJPEG/G.711 Number of Simultaneous Connections: max. 10 Bandwidth: 60 Mb/s in total Network Protocols Support: HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, UPnP, SNMP, QoS/DSCP, IEEE 802.1X, PPPoE, SMTP, ICMP, Unicast, SSL/TLS ONVIF Protocol Support: Profile S/G Camera Configuration: from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software: NMS, NVR-6000 Viewer Mobile applications: SuperLive Plus (iPhone, Android) OTHER FUNCTIONS Privacy Zones: 4 video mask type: single color or 1 video mask type: mosaic Motion Detection: yes Region of interest (ROI): 8 Video Content Analysis (VCA): tamper, abandoned object, object disappearance, line cross, zone entrance, zone exit, object counting, face detection, detection of people not wearing masks, pedestrian detection, cross counting, Scene Change, Video Blurred, Video Color Cast, objects distinguishing, people counting, vehicle detection, vehicle counting Image Processing: 180˚ image rotation, sharpening, mirror effect, corridor mode, vertical flip, horizontal flip, lens distortion correction Prealarm/Postalarm: up to 6 s/up to 120 s System Reaction to Alarm Events: e-mail, e-mail with attachment, saving file on FTP server, saving file on SD card Restoring default settings: via web browser, using reset button, via NMS IPTool software IR LED LED Number: 2 Range: 50 m Smart IR: yes (software support) INTERFACES Audio Input/Output: 1 x Jack (3.5 mm)/- Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot: microSD - capacity up to 128GB INSTALLATION PARAMETERS Dimensions (mm): with bracket: 81 (W) x 81 (H) x 220 (L) Weight: 0.7 kg Degree of Protection: IP 67 (details in the user’s manual) Enclosure: aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply: PoE, 12 VDC Surge protection: TVS 4000 V Power Consumption: 6 W, 10 W (IR on) Operating Temperature: -30°C ~ 60°C Humidity: max. 95%, relative (non-condensing)
|
290
|
|
NOVUS NEW
IP CAMERA WITH VIDEO CONTENT
ANALYSIS BASED ON DEEP LEARNING
NVIP-4VE-6501/F
Made in POLAND
|
NOVUS IP CAMERA WITH VIDEO CONTENT
ANALYSIS BASED ON DEEP LEARNING
NVIP-4VE-6501/F
Resolution: 4 MPX
Lens: fixed focal, f=2.8 mm/F1.6
Human/Vehicle Object Classification
D/N function - IR cut filter
Video content analysis based on Deep Learning
microSD card support
WDR with double scan sensor
Min. Illumination: 0.005 lx (0 lx, IR on)
IR LED, range up to 30 m
NOVUS IP CAMERA WITH VIDEO CONTENT ANALYSIS BASED ON DEEP LEARNING
NVIP-4VE-6501/F
Image Sensor: 4 MPX CMOS sensor 1/3” SmartSens Number of Effective Pixels: 2592 (H) x 1520 (V) Min. Illumination: 0.005 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter: auto/manual: 1/3 s ~ 1/100000 s Digital Slow Shutter (DSS): up to 1/3 s Wide Dynamic Range (WDR): yes (double scan sensor), 120dB Digital Noise Reduction (DNR): 2D, 3D Defog Function (F-DNR): yes Highlight Compensation (HLC): yes Back Light Compensation (BLC): yes Reduction of image flicker (Antiflicker): yes LENS Lens Type: fixed focal, f=2.8 mm/F1.6 DAY/NIGHT Switching Type: mechanical IR cut filter Switching Mode: auto, manual, time Switching Level Adjustment: yes Switching Delay: 2 ~ 120 s Switching Schedule: yes Visible Light Sensor: yes NETWORK Stream Resolution: 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 480 x 240, 320 x 240 (QVGA) Frame Rate: 30 fps for 2592 x 1520, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode: 3 streams Video/Audio Compression: H.264, H.264+, H.264 Smart, H.265, H.265+, H.265 Smart, MJPEG/G.711 Number of Simultaneous Connections: max. 10 Bandwidth: 60 Mb/s in total Network Protocols Support: HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, UPnP, SNMP, QoS/DSCP, IEEE 802.1X, PPPoE, SMTP, ICMP, Unicast, SSL/TLS ONVIF Protocol Support: Profile S/G Camera Configuration: from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software: NMS, NVR-6000 Viewer Mobile applications: SuperLive Plus (iPhone, Android) OTHER FUNCTIONS Privacy Zones: 4 video mask type: single color or 1 video mask type: mosaic Motion Detection: yes Region of interest (ROI): 8 Video Content Analysis (VCA): tamper, abandoned object, object disappearance, line cross, zone entrance, zone exit, object counting, face detection, detection of people not wearing masks, pedestrian detection, cross counting, Scene Change, Video Blurred, Video Color Cast, objects distinguishing, people counting, vehicle detection, vehicle counting Image Processing: 180˚ image rotation, sharpening, mirror effect, corridor mode, vertical flip, horizontal flip, lens distortion correction Prealarm/Postalarm: up to 6 s/up to 120 s System Reaction to Alarm Events: e-mail, e-mail with attachment, saving file on FTP server, saving file on SD card Restoring default settings: via web browser, using reset button, via NMS IPTool software IR LED LED Number: 1 Range: 30 m Smart IR: yes (software support) INTERFACES Audio Input/Output: 1 x Jack (3.5 mm)/- built-in microphone Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot: microSD - capacity up to 128GB INSTALLATION PARAMETERS Dimensions (mm): 95 (Ф) x 83 (H) Weight: 0.5 kg Degree of Protection: IP 67 (details in the user’s manual) Enclosure: vandalproof IK10 impact rating aluminium, white Power Supply: PoE, 12 VDC Surge protection: TVS 4000 V Power Consumption: 5 W, 7.5 W (IR on) Operating Temperature: -30°C ~ 60°C Humidity: max. 95%, relative (non-condensing)
|
345
|
|
NOVUS

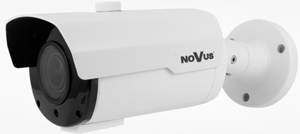

BULLET IP CAMERA
NVIP-4DN2002H/IR-1P-II
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-4DN2002H/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.06 lx/F1.3 color mode
Lens type variofocal, f=2.7 ~ 13.5 mm/F1.3
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 30 Range/ 40 m Angle/ 120°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -35°C ~ 60°C
MEMORY CARD SLOT/ MICROSD - CAPACITY UP TO 128GB
VIDEO CONTENT ANALYSIS (VCA)/ TAMPER, ABANDONED OBJECT,
OBJECT DISAPPEARANCE, LINE CROSS, ZONE ENTRANCE,
FACE DETECTION, PEDESTRIAN DETECTION, CROSS COUNTING
NOVUS BULLET IP CAMERA NVIP-4DN2002H/IR-1P-II Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.06 lx/F1.3 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/5 s ~ 1/20000 s Digital Slow Shutter (DSS)/ up to 1/5 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 90dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ varifocal, f=2.7 ~ 13.5 mm/F1.3 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Switching Delay/ 1 ~ 36 s Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2304 x 1296, 2048 x 1520, 1920 x 1080 (Full HD), 1280 x 960, 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 20 fps for 2592 x 1520, 30 fps for 2048 x 1520 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265/- Number of Simultaneous Connections/ max. 10 Bandwidth/ 63 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, UPnP, SMTP, P2P ONVIF Protocol Support/ Profile S (ONVIF 2.6) Camera Configuration/ from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software/ NMS Mobile applications/ RxCamView (iPhone, Android) OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 8 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, face detection, pedestrian detection, cross counting Image Processing/ 180˚ image rotation, corridor mode, vertical flip, horizontal flip Prealarm/Postalarm/ up to 5 s/up to 300 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving file on SD card, saving in the cloud storage IR LED LED Number/ 30 Range/ 40 m Angle/ 120° INTERFACES Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot/ microSD - capacity up to 128GB INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 84 (Ф) x 241 (L) Weight/ 0.7 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included Power Supply/ PoE, 12 VDC Surge protection/ TVS 4000 V Power Consumption/ 2 W, 8 W (IR on) Operating Temperature/ -35°C ~ 60°C Humidity/ max. 95%, relative (non-condensing)
|
317 |
|
NOVUS

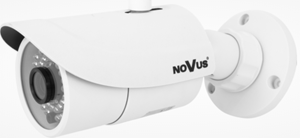

BULLET IP CAMERA
NVIP-4DN3060H/IR-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-4DN3060H/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.06 lx/F1.6 color mode
Lens type: fixed focal, f=4 mm/F1.6
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 42 Range/ 25 m Angle/ 90°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -30°C ~ 50°C
NOVUS BULLET IP CAMERA NVIP-4DN3060H/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.09 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1 s ~ 1/100000 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ yes LENS Lens Type/ fixed focal, f=4 mm/F1.6 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 25 fps for 2560 x 1440 (QHD), 30 fps for 2304 x 1296 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, MJPEG/G.711 Number of Simultaneous Connections/ max. 10 Bandwidth/ 14 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.3) Camera Configuration/ from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Image Processing/ 180˚ image rotation, sharpening, mirror effect Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 42 Range/ 25 m Angle/ 90° INTERFACES Audio Input/Output/ 1 x Jack (3.5 mm)/- Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 87 (Ф) x 219 (L) Weight/ 0.6 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply/ PoE, 12 VDC Power Consumption/ 4.1 W, 8 W (IR on) Operating Temperature/ -30°C ~ 50°C
|
294 |
|
NOVUS

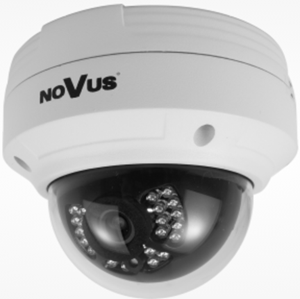

VANDAL PROOF IP CAMERA
NVIP-4DN3513V/IR-1P
Made in POLAND
|
NOVUS VANDAL PROOF IP CAMERA NVIP-4DN3513V/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.09 lx/F1.6 color mode
Lens type: fixed focal, f=3.6 mm/F1.6
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 24 Range/ 20 m Angle/ 90°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -25°C ~ 50°C
VIDEO CONTENT ANALYSIS (VCA)/ TAMPER, ABANDONED OBJECT,
OBJECT DISAPPEARANCE, LINE CROSS, ZONE ENTRANCE, MULTI LOITER
NOVUS BVANDAL PROOF IP CAMERA NVIP-4DN3513V/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.09 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 25 s ~ 1/100000 s Digital Slow Shutter (DSS)/ up to 1/3 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 120dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Highlight Compensation (HLC)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ fixed focal, f=3.6 mm/F1.6 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Delay/ 2 ~ 120 s Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 30 fps for 2592 x 1520, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265, MJPEG/G.711 Number of Simultaneous Connections/ max. 5 Bandwidth/ 30 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, SNTP, RTSP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP ONVIF Protocol Support/ Profile S Camera Configuration/ from Internet Explorer, Chrome browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 video mask type: single color or 4 video mask type: mosaic Motion Detection/ yes Region of interest (ROI)/ 3 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, multi loiter Image Processing/ 180˚ image rotation, sharpening, mirror effect, corridor mode Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 24 Range/ 20 m Angle/ 90° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm Audio Input/Output/ 1 x Jack (3.5 mm)/- Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ 116 (Ф) x 91 (H) Weight/ 0.6 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof IK10 impact rating aluminium, white poly-carbonate bubble Power Supply/ PoE, 12 VDC Power Consumption/ 2.5 W, 4 W (IR on) Operating Temperature/ -20°C ~ 50°C
|
282 |
|

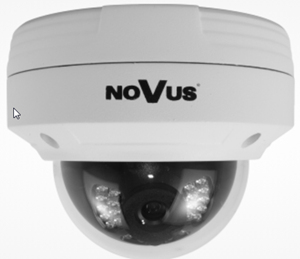

NOVUS
VANDAL PROOF IP CAMERA
NVIP-4DN3061V/IR-1P
Made in POLAND
|
NOVUS VANDAL PROOF IP CAMERA NVIP-4DN3061V/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.09 lx/F1.6 color mode
Lens type: fixed focal, f=4 mm/F1.6
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 24 Range/ 10 m Angle/ 90°
Degree of Protection: IP 66
Power Supply: PoE, 12 VDC
Operating Temperature/ -30°C ~ 50°C
NOVUS BVANDAL PROOF IP CAMERA NVIP-4DN3061V/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.09 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1 s ~ 1/100000 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ yes LENS Lens Type/ fixed focal, f=4 mm/F1.6 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 25 fps for 2560 x 1440 (QHD), 30 fps for 2304 x 1296 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, MJPEG/G.711 Number of Simultaneous Connections/ max. 10 Bandwidth/ 14 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.3) Camera Configuration/ from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Image Processing/ 180˚ image rotation, sharpening, mirror effect Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 24 Range/ 10 m Angle/ 90° INTERFACES Audio Input/Output/ 1 x Jack (3.5 mm)/- Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ 116 (Ф) x 91 (H) Weight/ 0.6 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof IK10 impact rating aluminium, white poly-carbonate bubble Power Supply/ PoE, 12 VDC Power Consumption/ 4.1 W, 6.6 W (IR on) Operating Temperature/ -30°C ~ 50°C
|
317 |
|

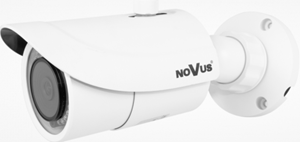

NOVUS
BULLET IP CAMERA
NVIP-4DN3511H/IR-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-4DN3511H/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.01 lx/F1.8 color mode
Lens type: fixed focal, f=2.8 mm/F1.8
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 36 Range/ 30 m Angle/ 90°
Degree of Protection: IK10 impact rating
Power Supply: PoE, 12 VDC
Operating Temperature/ -20°C ~ 50°C
VIDEO CONTENT ANALYSIS (VCA)/ TAMPER, ABANDONED OBJECT,
OBJECT DISAPPEARANCE, LINE CROSS, ZONE ENTRANCE
NOVUS BULLET IP CAMERA NVIP-4DN3511H/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.01 lx/F1.8 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto: 1/25 s ~ 1/100000 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 120dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Highlight Compensation (HLC)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ fixed focal, f=2.8 mm/F1.8 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 720 x 576 (D1), 352 x 288 (CIF) Frame Rate/ 30 fps for 2592 x 1520, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265, MJPEG/G.711 Number of Simultaneous Connections/ max. 5 Bandwidth/ 30 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.3) Camera Configuration/ from Internet Explorer, Firefox, Chrome, Opera browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 3 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance Image Processing/ 180˚ image rotation, sharpening, mirror effect, corridor mode Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 36 Range/ 30 m Angle/ 90° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm Audio Input/Output/ 1 x Jack (3.5 mm)/- Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 87 (Ф) x 219 (L) Weight/ 0.6 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply/ PoE, 12 VDC Power Consumption/ 2.5 W, 4.5 W (IR on) Operating Temperature/ -20°C ~ 50°C
|
324
|
|

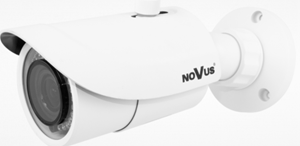

NOVUS
BULLET IP CAMERA
NVIP-4DN3512H/IR-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-4DN3512H/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.07 lx/F1.4 color mode
Lens type: fixed focal, f=2.8 ~ 12 mm/F1.4
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 36 Range/ 30 m Angle/ 120°
Degree of Protection: IK10 impact rating
Power Supply: PoE, 12 VDC
Operating Temperature/ -20°C ~ 50°C
VIDEO CONTENT ANALYSIS (VCA)/ TAMPER, ABANDONED OBJECT,
OBJECT DISAPPEARANCE, LINE CROSS, ZONE ENTRANCE, MULTI LOITER
NOVUS BULLET IP CAMERA NVIP-4DN3512H/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.07 lx/F1.4 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/25 s ~ 1/100000 s Digital Slow Shutter (DSS)/ up to 1/3 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 120dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Highlight Compensation (HLC)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ varifocal, f=2.8 ~ 12 mm/F1.4 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Delay/ 2 ~ 120 s Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 30 fps for 2592 x 1520, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265, MJPEG/G.711 Number of Simultaneous Connections/ max. 5 Bandwidth/ 30 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, SNTP, RTSP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP ONVIF Protocol Support/ Profile S Camera Configuration/ from Internet Explorer, Chrome browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 3 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, multi loiter Image Processing/ 180˚ image rotation, sharpening, mirror effect, corridor mode Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 36 Range/ 30 m Angle/ 120° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm Audio Input/Output/ 1 x Jack (3.5 mm)/- Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 87 (Ф) x 219 (L) Weight/ 1.2 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply/ PoE, 12 VDC Power Consumption/ 2.5 W, 7 W (IR on) Operating Temperature/ -20°C ~ 50°C
|
317
|
|

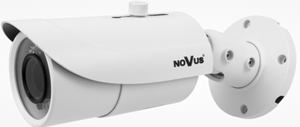

NOVUS
BULLET IP CAMERA WITH MOTOR-ZOOM LENS
NVIP-4DN3513H/IR-1P
Made in POLAND
|
NOVUS BULLET IP CAMERA NVIP-4DN3513H/IR-1P
Video resolution: 4 MPX CMOS sensor 1/3” OV
Number of Effective Pixels: 2688 (H) x 1520 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.07 lx/F1.4 color mode
LENS TYPE: *** MOTORIZED ***, f=2.8 ~ 12 mm/F1.4
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 48 Range/ 50 m Angle/ 90°
Degree of Protection: IK10 impact rating
Power Supply: PoE, 12 VDC
Operating Temperature/ -20°C ~ 50°C
MEMORY CARD SLOT/ MICROSD - CAPACITY UP TO 128GB
VIDEO CONTENT ANALYSIS (VCA)/ TAMPER, ABANDONED OBJECT,
OBJECT DISAPPEARANCE, LINE CROSS, ZONE ENTRANCE, MULTI LOITER,
SCENE CHANGE, VIDEO BLURRED, VIDEO COLOR CAST
Alarm Input/Output/ 1 (NO/NC)/1
NOVUS BULLET IP CAMERA NVIP-4DN3513H/IR-1P Image Sensor/ 4 MPX CMOS sensor 1/3” OV Number of Effective Pixels/ 2688 (H) x 1520 (V) Min. Illumination/ 0.07 lx/F1.4 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 25 s ~ 1/100000 s Digital Slow Shutter (DSS)/ up to 1/3 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 120dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Highlight Compensation (HLC)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ motorized, f=2.8 ~ 12 mm/F1.4 Auto-focus/ continuous, zoom trigger, day/night mode trigger, manual trigger DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Delay/ 2 ~ 120 s Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 30 fps for 2592 x 1520 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265, MJPEG/G.711 Number of Simultaneous Connections/ max. 5 Bandwidth/ 30 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, SNTP, RTSP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP ONVIF Protocol Support/ Profile S/G Camera Configuration/ from Internet Explorer, Chrome browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 video mask type: single color or 4 video mask type: mosaic Motion Detection/ yes Region of interest (ROI)/ 3 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, multi loiter, Scene Change, Video Blurred, Video Color Cast Image Processing/ 180˚ image rotation, sharpening, mirror effect, corridor mode Prealarm/Postalarm/ up to 6 s/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving file on SD card, alarm output activation IR LED LED Number/ 48 Range/ 50 m Angle/ 90° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm Audio Input/Output/ 1 x Jack (3.5 mm)/1 x Jack (3.5 mm) Alarm Input/Output/ 1 (NO/NC)/1 Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot/ microSD - capacity up to 128GB INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 109 (Ф) x 284 (L) Weight/ 1.1 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply/ PoE, 12 VDC Power Consumption/ 6.5 W, 8 W (IR on) Operating Temperature/ -30°C ~ 50°C
|
380 |
|

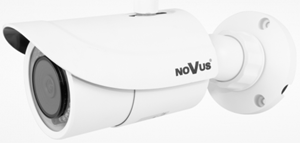

NOVUS
BULLET IP CAMERA WITH FACE DETECTION FUNCTION
NVIP-5DN3611H/IR-1P/F
Made in POLAND
|
NOVUS BULLET IP CAMERA WITH FACE DETECTION FUNCTION NVIP-5DN3611H/IR-1P/F
Video resolution: 5 MPX CMOS sensor 1/2.5” APTINA
Number of Effective Pixels: 2592 (H) x 1944 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.02 lx/F1.6 color mode
Lens Type: fixed focal, f=2.8 mm/F1.6
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 36 Range/ 30 m Angle/ 120°
Degree of Protection: IK10 impact rating
Power Supply: PoE, 12 VDC
Operating Temperature/ -20°C ~ 50°C
VIDEO CONTENT ANALYSIS (VCA)/ TAMPER, ABANDONED OBJECT,
OBJECT DISAPPEARANCE, LINE CROSS, ZONE ENTRANCE,
OBJECT COUNTING, MULTI LOITER, FACE DETECTION
NOVUS BULLET IP CAMERA WITH FACE DETECTION FUNCTION NVIP-5DN3611H/IR-1P/F Image Sensor/ 5 MPX CMOS sensor 1/2.5” APTINA Number of Effective Pixels/ 2592 (H) x 1944 (V) Min. Illumination/ 0.02 lx/F1.6 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto/manual: 1/3 s ~ 1/100000 s Digital Slow Shutter (DSS)/ up to 1/3 s Wide Dynamic Range (WDR)/ yes (double scan sensor), 120dB Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes Highlight Compensation (HLC)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ fixed focal, f=2.8 mm/F1.6 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Delay/ 2 ~ 120 s Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2592 x 1944, 2592 x 1520, 2560 x 1440 (QHD), 2304 x 1296, 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA), 320 x 240 (QVGA) Frame Rate/ 30 fps for 2592 x 1944, 60 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265, MJPEG/G.711 Number of Simultaneous Connections/ max. 6 Bandwidth/ 60 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, RTSP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP ONVIF Protocol Support/ Profile S/G Camera Configuration/ from Internet Explorer, Chrome browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Region of interest (ROI)/ 3 Video Content Analysis (VCA)/ tamper, abandoned object, object disappearance, line cross, zone entrance, object counting, multi loiter, face detection Image Processing/ 180˚ image rotation, sharpening, mirror effect, corridor mode Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server IR LED LED Number/ 36 Range/ 30 m Angle/ 120° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm Audio Input/Output/ 1 x Jack (3.5 mm)/- Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 87 (Ф) x 219 (L) Weight/ 0.6 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included , IK10 impact rating Power Supply/ PoE, 12 VDC Power Consumption/ 3 W, 8 W (IR on) Operating Temperature/ -20°C ~ 50°C
|
367 |
|

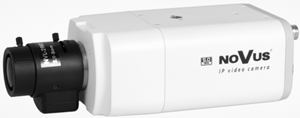

NOVUS
CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT
NVIP-NVIP-5DN7000C-1P
Made in POLAND
|
NOVUS CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT
NVIP-NVIP-5DN7000C-1P
Video resolution: 5 MPX CMOS sensor 1/2.5” APTINA
Number of Effective Pixels: 2592 (H) x 1944 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.2 lx/F1.2 color mode
Lens Type: fixed focal, f=2.8-12 mm/F1.2
DAY/NIGHT Switching Type: mechanical IR cut filter
IR LED Number: 36 Range/ 30 m Angle/ 120°
Degree of Protection: IK10 impact rating
Power Supply: PoE, 12 VDC
Operating Temperature/ -40°C ~ 50°C
AUDIO INPUT/OUTPUT/ 1 X JACK (3.5 MM)/1 X JACK (3.5 MM)
ALARM INPUT/OUTPUT/ 1 (NO/NC)/1 RELAY TYPE / MEMORY CARD SLOT/ MICROSD
NOVUS CLASSIC IP CAMERA WITH MEMORY CARD SUPPORT NVIP-NVIP-5DN7000C-1P IMAGE Image Sensor/ 5 MPX CMOS sensor 1/2.5” APTINA Number of Effective Pixels/ 2592 (H) x 1944 (V) Min. Illumination/ 0.2 lx/F1.2 - color mode (DSS), 0.02 lx/F1.2 - B/W mode (DSS) Electronic Shutter/ auto/manual: 1/1 s ~ 1/10000 s Digital Slow Shutter (DSS)/ up to 1 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 3D LENS Compatible Mount Type/ C, CS Iris Mode/ D DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time, external, smart Switching Schedule/ yes NETWORK Stream Resolution/ 2592 x 1944, 2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 1024 (SXGA), 1280 x 720 (HD), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 576 (D1), 640 x 480 (VGA), 352 x 288 (CIF) Frame Rate/ 12 fps for 2592 x 1944, 15 fps for 2048 x 1536 (QXGA), 30 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 4 streams Video/Audio Compression/ H.264, MJPEG/G.711, G.726 Number of Simultaneous Connections/ max. 4 Bandwidth/ 16 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS, PPPoE ONVIF Protocol Support/ Profile S (ONVIF 2.4) Camera Configuration/ from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 5 Motion Detection/ yes Region of interest (ROI)/ 4 Image Processing/ 180˚ image rotation, sharpening, mirror effect Prealarm/Postalarm/ up to 3 s or 20 frames/up to 9999 s or 20 frames System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving file on SD card, saving file on NAS server, alarm output activation, HTTP notification INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm - maintenance only Audio Input/Output/ 1 x Jack (3.5 mm)/1 x Jack (3.5 mm) Alarm Input/Output/ 1 (NO/NC)/1 relay type Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot/ microSD INSTALLATION PARAMETERS Dimensions (mm)/ 75 (W) x 52 (H) x 125 (L) Weight/ 0.35 kg Enclosure/ aluminium, white Power Supply/ PoE, 12 VDC Power Consumption/ 4 W Operating Temperature/ -10°C ~ 50°C Operating temperature with housing/ -40°C ~ 50°C
|
371 |
|

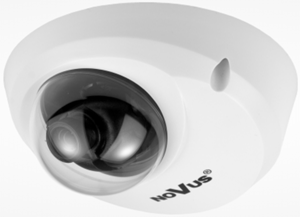

NOVUS
DOME IP CAMERA
NVIP-5C7000D-P
Made in POLAND
|
NOVUS DOME IP CAMERA NVIP-5C7000D-P
Video resolution: 5 MPX CMOS sensor 1/2.5” APTINA
Number of Effective Pixels: 2592 (H) x 1944 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.1 lx/F1.8 color mode
Lens Type: fixed focal, f= 4 mm / F1.8
DAY/NIGHT Switching Type: electronic
IR LED Number:______ Range:______ Angle:______
Degree of Protection:______
Power Supply: PoE, 12 VDC
Operating Temperature/ -10°C ~ 50°C
MEMORY CARD SLOT/ MICROSD
NOVUS DOME IP CAMERA NVIP-5C7000D-P Image Sensor/ 5 MPX CMOS sensor 1/2.5” APTINA Number of Effective Pixels/ 2592 (H) x 1944 (V) Min. Illumination/ 0.1 lx/F1.8 - color mode (DSS), 0.1 lx/F1.8 - B/W mode (DSS) Electronic Shutter/ auto/manual: 1/1 s ~ 1/10000 s Digital Slow Shutter (DSS)/ up to 1 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 3D Defog Function (F-DNR)/ no LENS Lens Type/ fixed focal, f=4 mm/F1.8 DAY/NIGHT Switching Type/ electronic D/N function Switching Mode/ auto NETWORK Stream Resolution/ 2592 x 1944, 2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 1024 (SXGA), 1280 x 720 (HD), 1024 x 768 (XGA), 800 x 600 (SVGA), 720 x 576 (D1), 640 x 480 (VGA), 352 x 288 (CIF) Frame Rate/ 12 fps for 2592 x 1944, 15 fps for 2048 x 1536 (QXGA), 30 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode/ 4 streams Video/Audio Compression/ H.264, MJPEG/G.711, G.726 Number of Simultaneous Connections/ max. 4 Bandwidth/ 16 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS, PPPoE ONVIF Protocol Support/ Profile S (ONVIF 2.4) Camera Configuration/ from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 5 Motion Detection/ yes Region of interest (ROI)/ 4 Image Processing/ 180˚ image rotation, sharpening, mirror effect Prealarm/Postalarm/ up to 3 s or 20 frames/up to 9999 s or 20 frames System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving file on SD card, saving file on NAS server, HTTP notification INTERFACES Audio Input/Output/ built-in microphone Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot/ microSD INSTALLATION PARAMETERS Dimensions (mm)/ 111 (Ф) x 48 (H) Weight/ 0.2 kg Enclosure/ plastic, white Power Supply/ PoE Power Consumption/ 3.5 W Operating Temperature/ -10°C ~ 50°C
|
397 |
|

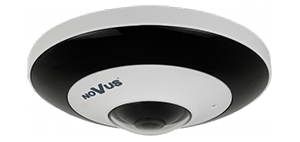

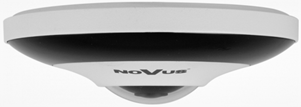

NOVUS
VANDAL PROOF IP CAMERA WITH
FISHEYE LENS
NVIP-6DN3618V/IR-1P
Made in POLAND
|
NOVUS VANDAL PROOF IP CAMERA WITH FISHEYE LENS
NVIP-6DN3618V/IR-1P
Video resolution: 6 MPX
CMOS sensor 1/2.9” SONY Exmor R STARVIS
Number of Effective Pixels: 3096 (H) x 2202 (V)
Sensitivity: 0 Lux (IR On) B/W mode
Min. Illumination 0.1 lx/F2.5 color mode
Lens Type: fixed focal, f= 4 mm / F1.8
DAY/NIGHT Switching Type: Electronic Shutter
IR LED Number:6 Range: 30m Angle: 120°
Degree of Protection:IP 66 / vandalproof IK10
impact rating aluminium, white
Power Supply: PoE, 12 VDC
Operating Temperature/ -20°C ~ 50°C
MEMORY CARD SLOT:MICROSD CAPACITY UP TO 128GB
AUDIO INPUT/OUTPUT/1xJACK(3.5MM)/1xJACK(3.5 MM)
BUILT-IN MICROPHONE
ALARM INPUT/OUTPUT/ 1 (NO/NC)/1
NOVUS VANDAL PROOF IP CAMERA WITH FISHEYE LENS NVIP-6DN3618V/IR-1P Image Sensor/ 6 MPX CMOS sensor 1/2.9” SONY Exmor R STARVIS Number of Effective Pixels/ 3096 (H) x 2202 (V) Min. Illumination/ 0.1 lx/F2.5 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter/ auto: 1/25 s ~ 1/100000 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 2D, 3D Highlight Compensation (HLC)/ yes Back Light Compensation (BLC)/ yes LENS Lens Type/ fisheye, f=1.07 mm/F2.5 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual, time Switching Level Adjustment/ yes Switching Schedule/ yes Visible Light Sensor/ yes NETWORK Stream Resolution/ 2160 x 2160, 1920 x 1920, 1440 x 1440, 960 x 960, 480 x 480 Frame Rate/ 30 fps for 2160 x 2160 and lower resolutions Multistreaming Mode/ 3 streams Video/Audio Compression/ H.264, H.265, MJPEG/G.711 Number of Simultaneous Connections/ max. 11 Bandwidth/ 16 Mb/s in total Network Protocols Support/ HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DDNS, NTP, RTSP, PPPoE, SMTP ONVIF Protocol Support/ Profile S/G Camera Configuration/ from Internet Explorer, Safari browser languages: Polish, English, Russian, and others Compatible Software/ NMS OTHER FUNCTIONS Privacy Zones/ 4 Motion Detection/ yes Prealarm/Postalarm/ -/up to 120 s System Reaction to Alarm Events/ e-mail with attachment, saving file on FTP server, saving file on SD card, alarm output activation IR LED LED Number/ 6 Range/ 30 m Angle/ 120° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm - maintenance only Audio Input/Output/ 1 x Jack (3.5 mm)/1 x Jack (3.5 mm) built-in microphone Alarm Input/Output/ 1 (NO/NC)/1 Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot/ microSD - capacity up to 128GB INSTALLATION PARAMETERS Dimensions (mm)/ 130 (Ф) x 39 (H) Weight/ 0.45 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof IK10 impact rating aluminium, white Power Supply/ PoE, 12 VDC Power Consumption/ 5 W, 14.5 W (IR on) Operating Temperature/ -20°C ~ 50°C
|
495 |
|

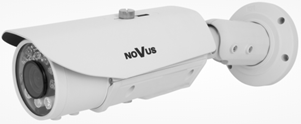

NOVUS
BULLET IP CAMERA
NVIP-2DN5021H/IRH-1P
Made in POLAND
|
NOVUS BULLET IP LPR CAMERA WITH MOTOR-ZOOM LENS
NVIP-2DN5021H/IRH-1P/LPR
Video resolution: 2 MPX
Lens: motorized, auto-iris and auto-focus function,
f=7 ~ 22 mm/F1.2
D/N function - IR cut filter
Licence plate recognition (LPR)
SD card support
Min. Illumination from 0.01 lx (0 lx, IR on)
IR LED, range up to 70 m
LICENCE PLATE RECOGNITION (LPR)
Autonomous operation mode
recognition function implemented in the camera
Types of recognized number plates:
all countries of the European Union /
CIS countries / Turkey / Israel / Switzerland /
Norway and others
Barrier control - built-in relay output
Recommended maximum speed of the vehicle:
up to 50 km/h
Data recorded in the camera base:
recognition date/time,
number of recognised licence plate,
image of recognised licence plate,
vehicle movement direction,
system reaction,
presence on the "white list" or "black list",
country of origin of the registration plate
Reactions for the licence plate recognition:
e-mail with attachment, saving file on FTP server,
alarm output activation
MEMORY CARD SLOT:MICROSD CAPACITY UP TO 128GB
NOVUS BULLET IP CAMERA NVIP-2DN5021H/IRH-1P/LPR IMAGE Image Sensor: 2 MPX CMOS sensor 1/2.9” SONY Exmor Number of Effective Pixels: 1984 (H) x 1105 (V) Min. Illumination: 0.01 lx/F1.2 - color mode, 0 lx (IR on) - B/W mode Electronic Shutter: auto/manual: 1 s ~ 1/10000 s Digital Slow Shutter (DSS): up to 1 s Wide Dynamic Range (WDR): yes Digital Image Stabilization (DIS): yes Digital Noise Reduction (DNR): 2D, 3D Defog Function (F-DNR): yes Highlight Compensation (HLC): yes Back Light Compensation (BLC): yes LENS Lens Type: motorized, auto-iris function, f=7 ~ 22 mm/F1.2 Auto-focus: zoom trigger, manual trigger DAY/NIGHT Switching Type: mechanical IR cut filter Switching Mode: auto, manual, time Switching Level Adjustment: yes Switching Delay: 0 ~ 180 s Switching Schedule: yes Visible Light Sensor: yes NETWORK Stream Resolution: 1920 x 1080 (Full HD), 1280 x 720 (HD), 704 x 576, 704 x 480, 640 x 480 (VGA), 640 x 360, 352 x 288 (CIF), 320 x 240 (QVGA) Frame Rate: 30 fps for 1920 x 1080 (Full HD) and lower resolutions Multistreaming Mode: 2 streams Video/Audio Compression: H.264, MJPEG/G.711, RAW_PCM Number of Simultaneous Connections: max. 8 Bandwidth: 25 Mb/s in total Network Protocols Support: HTTP, TCP/IP, IPv4, UDP, HTTPS, Multicast, FTP, DHCP, DNS, DDNS, NTP, RTSP, PPPoE, SMTP ONVIF Protocol Support: Profile S Camera Configuration: from Internet Explorer browser languages: Polish, English, Russian, and others Compatible Software: NMS OTHER FUNCTIONS Privacy Zones: 4 Motion Detection: yes Region of interest (ROI): 5 Image Processing: 180˚ image rotation, sharpening, mirror effect, corridor mode Prealarm/Postalarm: up to 5 MB/up to 86400 s System Reaction to Alarm Events: e-mail with attachment, saving file on FTP server, saving file on SD card LICENCE PLATE RECOGNITION (LPR) Autonomous operation mode: yes - recognition function implemented in the camera Types of recognized number plates: all countries of the European Union / CIS countries / Turkey / Israel / Switzerland / Norway and others Barrier control: yes - built-in relay output Recommended maximum speed of the vehicle: up to 50 km/h Data recorded in the camera base: recognition date/time, number of recognised licence plate, image of recognised licence plate, vehicle movement direction, system reaction, presence on the "white list" or "black list", country of origin of the registration plate Reactions for the licence plate recognition: e-mail with attachment, saving file on FTP server, alarm output activation IR LED LED Number: 17 Range: 70 m Angle: 50° INTERFACES Video Output: BNC, 1.0 Vp-p, 75 Ohm - maintenance only Audio Input/Output: 1 x RCA/1 x RCA Alarm Input/Output: 1 (NO/NC)/1 relay type Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Memory Card Slot: SD - capacity up to 64GB INSTALLATION PARAMETERS Dimensions (mm): with bracket: 110 (Ф) x 377 (L) Weight: 1.7 kg Degree of Protection: IP 66 (details in the user’s manual) Enclosure: aluminium, white, fully cable managed wall mount bracket in-set included Power Supply: PoE, 12 VDC Power Consumption: 6 W, 15 W (IR and heater on) Operating Temperature: -30°C ~ 60°C Humidity: max. 90%, relative (non-condensing) Built-in Heater/Fan: yes/no
|
789 |
|
BOSCH 700 Series Hybrid/Network Recorder
DHR-732-08A000
Made in Germany
|
BOSCH 700 SERIES HYBRID/NETWORK RECORDER
VIDEO AND AUDIO CHANNELS:
8 ANALOG CAMERA + 8 IP VIDEO CAMERA
Digital Hybrid Recorder DHR-732-08A000 Series DHR,
8 ANALOG CHANEL, 0 GB HDD, Interface: LAN Rj45 1 Gbit/s
Real-time H.264 recording and playback in genuine
4CIF resolution for up to 32 cameras simultaneously
Hybrid models offer up to 16 analog and 16 IP camera channels;
IP-only models offer up to 32 IP camera channels
Fully automated assignment and management of H. 264
IP cameras Internal storage up to 8 TB on four front-
accessible hard drives with optional on-board RAID-4 support
BOSCH 700 Series Hybrid/Network Recorder DHR-730-08A000 - Digital Hybrid Recorder 730 Series DHR, 1 GigE, 8 CH, 0 GB / Real-time H.264 recording and playback in genuine 4CIF resolution for up to 32 cameras simultaneously Hybrid models offer up to 16 analog and 16 IP camera channels; IP-only models offer up to 32 IP camera channels Fully automated assignment and management of H. 264 IP cameras Internal storage up to 8 TB on four front-accessible hard drives with optional on-board RAID-4 support Text support for storage and retrieval of video, synchronized to external data like ATM/POS data, license plate numbers, or GPS data The Bosch 700 Series Hybrid and Network Recorders offer top-of-the-line performance and adaptability. Equipped with four front-replaceable hard drives and extensive integration features, the 700 Series is ideal for medium to large-scale systems. 700 Series’ superior image quality and compression gets the most out of CCTV images. Available in both IP-only and hybrid models, the 700 Series can handle even the most challenging CCTV applications without excessive demands from installers and operators.
|
565 |
|

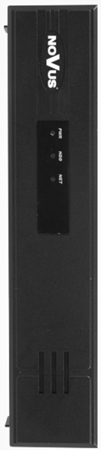

NOVUS
IP RECORDER
NVR-3408POE
Made in POLAND
|
NOVUS IP RECORDER NVR-3408POE
VIDEO AND AUDIO CHANNELS: 8 IP VIDEO CAMERA
8 x Ethernet PoE - RJ-45 interface,
10/100 Mbit/s Video and audio channels:
RTSP Recording speed up to 240 fps at 2048 x 1536
Recorded stream size: 54 Mb/s in
total from all cameras
Monitor outputs: 3 (HDMI, VGA, BNC)
Internal Storage/ available mount: 1 x HDD 3.5” SATA
**** Face detection 1 channel ****
1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
Dimensions (mm)/ 215 (W) x 48 (H) x 235 (D)
Weight/ 1.5 kg (without HDD)
Power Supply/ 48 VDC (100 ~ 240 VAC/
48 VDC PSU in-set included)
Power Consumption/ 20 W (with 1 HDD) + 70 W PoE
Operating Temperature/ -10°C ~ 55°C
NOVUS IP RECORDER NVR-3408POE 8 x Ethernet PoE - RJ-45 interface, 10/100 Mbit/s Video and audio channels: 8 Supported protocols: ONVIF, RTSP Recording speed up to 240 fps at 2048 x 1536 Supports resolution up to 2048 x 1536 Recorded stream size: 54 Mb/s in total from all cameras Internal HDDs mount: 1 Monitor outputs: 3 (HDMI, VGA, BNC) Intelligent image analysis /Compression/ H.264 Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI, 1 x VGA, 1 x BNC (up to 3 monitors simultaneously) Dualstreaming Support/ yes* AUDIO Audio Output/ 1 x line-out (RCA) RECORDING Recording Speed/ 240 fps (8 x 30 fps for 1280 x 720), 240 fps (8 x 30 fps for 1920 x 1080), 240 fps (8 x 30 fps for 2048 x 1536) Stream Size/ 54 Mb/s in total from all cameras Recording Mode/ time-lapse, triggered by: motion detection, perimeter intrusion detection Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, possibility of combining individual recording modes Prealarm/Postalarm/ up to 32 MB/do 300 s DISPLAY Display Speed/ 240 fps (8 x 30 fps)**/*** PLAYBACK Playback Speed/ 240 fps (8 x 30 fps for 1280 x 720), 120 fps (4 x 30 fps for 1920 x 1080), 30 fps (1 x 30 fps for 2048 x 1536) Recorded Data Search/ by date/time, image analysis events BACKUP Backup Methods/ USB port (HDD or Flash memory), network, cloud storage Backup File Format/ AVI, DAV STORAGE Internal Storage/ available mount: 1 x HDD 3.5” 6 TB SATA Total Internal Capacity/ 6 TB ALARM Camera Alarm Input/Output/ supports camera’s alarm input/output * Motion Detection/ supports camera’s motion detection* System Reaction to Alarm Events/ buzzer, e-mail, screen message, recording activation, PTZ, cloud storage INTELLIGENT IMAGE ANALYSIS Perimeter intrusion detection/ 2 channels **** Face detection/ 1 channel **** NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s 8 x Ethernet PoE - RJ-45 interface, 10/100 Mbit/s Network Protocols Support/ HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, UPnP, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.2 or higher) PC/MAC Software/ Internet Explorer, Firefox, Chrome/- Mobile applications/ VSS Mobile (iPhone, Android) Number of Simultaneous Connections/ up to 10 clients Bandwidth/ 26 Mb/s in total to all client workstations - with image analysis 45 Mb/s in total to all client workstations - without image analysis PTZ PTZ Functions/ pan/tilt/zoom, preset commands* AUXILIARY INTERFACES USB Ports/ 2 x USB 2.0, OPERATING SYSTEM Operating System/ Linux Operation Mode/ triplex OSD/ languages: Polish, English, Russian, others Control/ PC mouse (in-set included), network System Diagnostic/ automatic control of: HDDs, network, camera connection loss Security/ password protection, IP filtering INSTALLATION PARAMETERS Dimensions (mm)/ 215 (W) x 48 (H) x 235 (D) Weight/ 1.5 kg (without HDD) Power Supply/ 48 VDC (100 ~ 240 VAC/48 VDC PSU in-set included) Power Consumption/ 20 W (with 1 HDD) + 70 W PoE Operating Temperature/ -10°C ~ 55°C
|
558 |
|

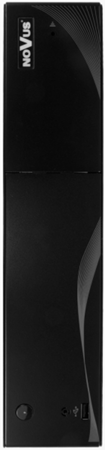

NOVUS
IP RECORDER
NVR-7308P8-H2
Made in POLAND
|
NOVUS IP RECORDER NVR-7308P8-H2
VIDEO AND AUDIO CHANNELS: 8 IP VIDEO CAMERA
8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface,
10/100 Mbit/s Video and audio channels:
Recording speed up to 240 fps at 2592 x 1944
Internal HDDs mount: 2
Monitor outputs: 2 (HDMI, VGA)
Stream Size/ 150 Mb/s in total from all cameras
1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
Backup Methods/ USB port (HDD or Flash memory),
Control: PC mouse (in-set included),
Dimensions (mm)/ 340 (W) x 77 (H) x 217 (D)
Weight: 3.2 kg (without HDD)
Power Supply: 100 ~ 240 VAC
Power Consumption: 40 W (with 2 HDDs) + 123 W PoE
Operating Temperature/ 0°C ~ 50°C
network, eSATA port (HDD) Backup File Format/ AVI, DAT
Internal Storage: available mount: 2 x HDD 3.5” SATA
INTERFACES USB Ports/ 1 x USB 2.0, 1 x USB 3.0
OPERATING SYSTEM Linux
NOVUS IP RECORDER NVR-7308P8-H2 8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s Video and audio channels: 8 Supported protocols: ONVIF, RTSP Recording speed up to 240 fps at 2592 x 1944 Supports resolution up to 2592 x 1944 Recorded stream size: 150 Mb/s in total from all cameras Internal HDDs mount: 2 Monitor outputs: 2 (HDMI, VGA) ipGO - extremely easy adding and configuring IP cameras with DVR menu Maximum Supported Camera Resolution/ 2592 x 1944 Compression/ H.264, H.264+ Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI, 1 x VGA (up to 2 monitors simultaneously) Dualstreaming Support/ yes* AUDIO Audio Output/ 1 x line-out (RCA) 1 x HDMI RECORDING Recording Speed/ 240 fps (8 x 30 fps for 1280 x 720), 240 fps (8 x 30 fps for 1920 x 1080), 240 fps (8 x 30 fps for 2048 x 1536), 240 fps (8 x 30 fps for 2560 x 1440), 240 fps (8 x 30 fps for 2592 x 1944) Stream Size/ 150 Mb/s in total from all cameras Recording Mode/ time-lapse, triggered by: manual, alarm input, motion detection Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 15 min, possibility of combining individual recording modes Prealarm/Postalarm/ up to 30 s/up to 180 s DISPLAY Display Speed/ 240 fps (8 x 30 fps)** PLAYBACK Playback Speed/ 240 fps (8 x 30 fps for 1280 x 720) **, 240 fps (8 x 30 fps for 1920 x 1080) **, 240 fps (8 x 30 fps for 2048 x 1536) **, 240 fps (8 x 30 fps for 2560 x 1440) **, 240 fps (8 x 30 fps for 2592 x 1944) ** Recorded Data Search/ by date/time, events BACKUP Backup Methods/ USB port (HDD or Flash memory), network, eSATA port (HDD) Backup File Format/ AVI, DAT STORAGE Internal Storage/ available mount: 2 x HDD 3.5” 6 TB SATA Total Internal Capacity/ 12 TB ALARM Internal Alarm Input/Output/ 2/1 relay type Motion Detection/ supports camera’s motion detection* System Reaction to Alarm Events/ buzzer, alarm output activation, recording activation, PTZ, e-mail with atatchment NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s 8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s Network Protocols Support/ HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.2 or higher) PC/MAC Software/ NMS, Internet Explorer, Firefox, Chrome, Opera/Safari Mobile applications/ NVR 7000 Viewer (iPhone, Android) Number of Simultaneous Connections/ up to 2 clients Bandwidth/ 150 Mb/s in total to all client workstations PTZ PTZ Functions/ pan/tilt/zoom, preset commands* AUXILIARY INTERFACES USB Ports/ 1 x USB 2.0, 1 x USB 3.0 OPERATING SYSTEM Operating System/ Linux Operation Mode/ triplex OSD/ languages: Polish, English, others Control/ PC mouse (in-set included), network System Diagnostic/ automatic control of: HDDs, network, camera connection loss Security/ password protection, IP filtering, MAC filtering INSTALLATION PARAMETERS Dimensions (mm)/ 340 (W) x 77 (H) x 217 (D) Weight/ 3.2 kg Power Supply/ 100 ~ 240 VAC Power Consumption/ 40 W (with 2 HDDs) + 123 W PoE Operating Temperature/ 0°C ~ 50°C
|
794 |
|

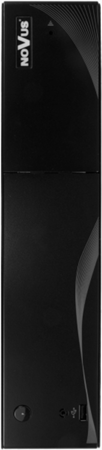

NOVUS
IP RECORDER
NVR-7316P8-H2
Made in POLAND
|
NOVUS IP RECORDER NVR-7316P8-H2
VIDEO AND AUDIO CHANNELS: 16 IP VIDEO CAMERA
8 x IP Camera + 8 x IP Camera Ethernet PoE
(IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s
Recording speed up to 480 fps at 2592 x 1944
Recorded stream size: 150 Mb/s in total from all cameras
Monitor outputs: 2 (HDMI, VGA)
Internal HDDs mount: 2 x HDD 3.5” SATA
1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s
8 x Ethernet PoE (IEEE802.3af-15.4W)
Control: PC mouse (in-set included),
Dimensions (mm)/ 340 (W) x 77 (H) x 217 (D)
Weight/ 3.2 kg (without HDD)
Power Supply/ 100 ~ 240 VAC
Power Consumption/ 40 W (with 2 HDDs) + 123 W PoE
Operating Temperature/ 0°C ~ 50°C
NOVUS IP RECORDER NVR-7316P8-H2 8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s Video and audio channels: 16 Supported protocols: ONVIF, RTSP Recording speed up to 480 fps at 2592 x 1944 Supports resolution up to 2592 x 1944 Recorded stream size: 150 Mb/s in total from all cameras Internal HDDs mount: 2 Monitor outputs: 2 (HDMI, VGA) ipGO - extremely easy adding and configuring IP cameras with DVR menu Maximum Supported Camera Resolution/ 2592 x 1944 Compression/ H.264, H.264+ Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI, 1 x VGA (up to 2 monitors simultaneously) Dualstreaming Support/ yes* AUDIO Audio Output/ 1 x line-out (RCA) 1 x HDMI RECORDING Recording Speed/ 480 fps (16 x 30 fps for 1280 x 720), 480 fps (16 x 30 fps for 1920 x 1080), 480 fps (16 x 30 fps for 2048 x 1536), 480 fps (16 x 30 fps for 2560 x 1440), 480 fps (16 x 30 fps for 2592 x 1944) Stream Size/ 150 Mb/s in total from all cameras Recording Mode/ time-lapse, triggered by: manual, alarm input, motion detection Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 15 min, possibility of combining individual recording modes Prealarm/Postalarm/ up to 30 s/up to 180 s DISPLAY Display Speed/ 480 fps (16 x 30 fps)** PLAYBACK Playback Speed/ 480 fps (16 x 30 fps for 1280 x 720) **, 480 fps (16 x 30 fps for 1920 x 1080) **, 480 fps (16 x 30 fps for 2048 x 1536) **, 480 fps (16 x 30 fps for 2560 x 1440) **, 480 fps (16 x 30 fps for 2592 x 1944) ** Recorded Data Search/ by date/time, events BACKUP Backup Methods/ USB port (HDD or Flash memory), network, eSATA port (HDD) Backup File Format/ AVI, DAT STORAGE Internal Storage/ available mount: 2 x HDD 3.5” 6 TB SATA Total Internal Capacity/ 12 TB ALARM Internal Alarm Input/Output/ 2/1 relay type Motion Detection/ supports camera’s motion detection* System Reaction to Alarm Events/ buzzer, alarm output activation, recording activation, PTZ, e-mail with atatchment NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s 8 x Ethernet PoE (IEEE802.3af-15.4W) - RJ-45 interface, 10/100 Mbit/s Network Protocols Support/ HTTP, TCP/IP, IPv4, UDP, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, SMTP ONVIF Protocol Support/ Profile S (ONVIF 2.2 or higher) PC/MAC Software/ NMS, Internet Explorer, Firefox, Chrome, Opera/Safari Mobile applications/ NVR 7000 Viewer (iPhone, Android) Number of Simultaneous Connections/ up to 2 clients Bandwidth/ 150 Mb/s in total to all client workstations PTZ PTZ Functions/ pan/tilt/zoom, preset commands* AUXILIARY INTERFACES USB Ports/ 1 x USB 2.0, 1 x USB 3.0 OPERATING SYSTEM Operating System/ Linux Operation Mode/ triplex OSD/ languages: Polish, English, others Control/ PC mouse (in-set included), network System Diagnostic/ automatic control of: HDDs, network, camera connection loss Security/ password protection, IP filtering, MAC filtering INSTALLATION PARAMETERS Dimensions (mm)/ 340 (W) x 77 (H) x 217 (D) Weight/ 3.2 kg Power Supply/ 100 ~ 240 VAC Power Consumption/ 40 W (with 2 HDDs) + 123 W PoE Operating Temperature/ 0°C ~ 50°C
|
869 |
|
NOVUS
POE INJECTOR
NV-1000PS/P+
|
NOVUS POE INJECTOR NV-1000PS/P+
1 x 1000Mb/s PoE+ / Device Type/ PoE+ injector
NETWORK Transmission Distance/ 1 ports in PoE mode: 100 m
* 1 ports in PoE+ mode: +20 m *
PoE standards/ IEEE802.3 af, IEEE802.3 af
Protocols Support/ IEEE 802.3ab 1000BASE-T
INSTALLATION PARAMETERS Case/ ABS Plastic, color black
Dimensions (mm)/ 64.5 (W) x 40.5 (H) x 145.5 (L)
Weight/ 200 g Power Supply/ 100 ~ 240 VAC, 50/60Hz
Power Consumption/ 30 W Power Efficiency/ 30 W
Operating Temperature/ 0°C ~ 55°C
Connector/ Input: 1 x RJ45 / Output 1 x RJ45 Weight/ 200 g
|
89 |
|
NOVUS
POE INJECTOR
NV-1001PS/P+
|
NOVUS POE INJECTOR NV-1000PS/P+
1 x 1000Mb/s PoE+ / Device Type/ PoE+ injector
NETWORK Transmission Distance/ 1 ports in PoE+ mode: 100 m
PoE standards/ IEEE802.3 af, IEEE802.3 at
Protocols Support/ IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
INSTALLATION PARAMETERS Case/ ABS Plastic, color black
Dimensions (mm)/ 64 (W) x 40 (H) x 160 (L)
Weight/ 200 g Power Supply/ 100 ~ 240 VAC, 50/60Hz
Power Consumption/ 30 W Power Efficiency/ 30 W
Operating Temperature/ -10°C ~ 55°C
Connector/ Input: 1 x RJ45 / Output 1 x RJ45 Weight/ 200 g
|
97 |
|
NOVUS
4-PORT POE SWITCH
NVS-3004SP
|
NOVUS 4-PORT POE SWITCH NVS-3004SP
4 x 100Mb/s PoE+ / 1 x 100Mb/s UPLINK
Device Type: PoE+ Switch / NETWORK Ports/ PoE+
Ports: 4 x 10Mb/s, 100Mb/s
UPLINK ports: 1 x 10Mb/s , 100Mb/s
PoE standards/ IEEE802.3 af, IEEE802.3 at
PoE modes/ Endspan (1,2+ / 3,6-), Midspan (4,5+ / 7,8-)
Switching capacity/ 1 Gb/s
Protocols Support/ IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX, IEEE 802.3x
MAC ADDRESS list/ 1K - FUNCTIONS CCTV/
Extended mode switch that increases transmission range and PoE up to 150 - 250m
(Using 10 Mb/s bandwidth) Additional operating modes/ Extended Surge protection/ yes
INSTALLATION PARAMETERS Case/ Metal, color navy blue
Dimensions (mm)/ 100 (W) x 26 (H) x 100 (L)
Weight/ 225 g Power Supply/ 51 VDC (power supply 100 ~ 240 VAC/51 VDC included)
Power Consumption/ 63 W
Power Efficiency/ 63 W for ports 1 to 4, up to 30 W for one port
Operating Temperature/ 0°C ~ 40°C
|
179 |
|
NOVUS
4-PORT POE SWITCH
NVS-3104SP
|
NOVUS 4-PORT POE SWITCH NVS-3104SP
4 x 100Mb/s PoE+ 2 x 100Mb/s UPLINK
Device Type/ PoE+ Switch NETWORK Ports/ PoE+
Ports: 4 x 10Mb/s / 100Mb/s
UPLINK ports: 2 x 10Mb/s / 100Mb/s
PoE standards/ IEEE802.3 af, IEEE802.3 at
PoE modes/ Endspan (1,2+ / 3,6-)
Switching capacity/ 1.2 Gb/s
Protocols Support/ IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX, IEEE 802.3x
MAC ADDRESS list/ 1K
INSTALLATION PARAMETERS Case/ Metal, color navy blue Dimensions (mm)/ 140 (W) x 28 (H) x 92 (L) Weight/ 360 g Power Supply/ 53 VDC (power supply 100 ~ 240 VAC/53 VDC included) Power Consumption/ 60 W Power Efficiency/ 60 W for ports 1 to 4, up to 30 W for one port Operating Temperature/ 0°C ~ 40°C
|
201 |
|
NOVUS
8-PORT POE SWITCH
NVS-3008SP
|
NOVUS 8-PORT POE SWITCH NVS-3008SP
8 x 100Mb/s PoE+ 1 x 100Mb/s UPLINK
Device Type/ PoE+ Switch NETWORK
Ports/ PoE+ Ports: 8 x 10Mb/s / 100Mb/s
UPLINK ports: 1 x 10Mb/s / 100Mb/s
PoE standards/ IEEE802.3 af, IEEE802.3 at
PoE modes/ Endspan (1,2+ / 3,6-), Midspan (4,5+/7,8-)
Switching capacity/ 1.8 Gb/s
Protocols Support/ IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX, IEEE 802.3x
MAC ADDRESS list/ 4K
FUNCTIONS CCTV/ Extended mode switch that increases transmission range and PoE up to 150 - 250m (Using 10 Mb/s bandwidth) Additional operating modes/ Extended Surge protection/ yes INSTALLATION PARAMETERS Case/ Metal, color navy blue Dimensions (mm)/ 178 (W) x 26 (H) x 65 (L) Weight/ 600 g Power Supply/ 51 VDC (power supply 100 ~ 240 VAC/51 VDC included) Power Consumption/ 63 W Power Efficiency/ 63 W for ports 1 to 8, up to 30 W for one port Operating Temperature/ 0°C ~ 40°C
|
321 |
|
NOVUS
16-PORT POE+ MANAGED SWITCH
NVS-5016SP+
|
NOVUS 16-PORT POE+ MANAGED SWITCH NVS-5016SP+
16 x 100Mb/s PoE+ 2 x 1000Mb/s UPLINK,
2 x 1000Mb/s SFP UPLINK
Device Type/ PoE+ Managed Switch NETWORK
Ports/ PoE+ Ports: 16 x 10Mb/s / 100Mb/s
Uplink Combo x 2 :SFP(1Gb/s) + RJ45(1Gb/s)
PoE standards/ IEEE802.3 af, IEEE802.3 at
PoE modes/ Endspan (1,2+ / 3,6-), Midspan (4,5+ / 7,8-)
Switching capacity/ 7.2 Gb/s
Protocols Support/ IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T,
IEEE 802.3z 1000BASE-SX\LX, IEEE 802.3x,
IEEE 802.1D spanning tree protocol, IEEE 802.1w
rapid spanning tree protocol, IEEE 802.1Q VLAN tagging
Additional network features/ VLAN, IGMP snooping QoS support/ yes MAC ADDRESS list/ 4K FUNCTIONS Buttons/ 1 button to device reset Surge protection/ yes INSTALLATION PARAMETERS RACK Mount 19"/ 1U Case/ Metal, color navy blue Dimensions (mm)/ 284 (W) x 44 (H) x 440 (L) Weight/ 4.35 kg Power Supply/ 100 ~ 240 VAC, 50/60Hz Power Consumption/ 250 W Power Efficiency/ 230 W for ports 1 to 24, up to 38 W for one port Operating Temperature/ 0°C ~ 40°C
|
542 |
|
NOVUS
SFP MODULE
NV-01SFP
|
NOVUS SFP MODULE NV-01SFP
KEY FEATURES 1 x 1000Mb/s LC
DESCRIPTION SFP Module (Single-Mode),
(LC), 20 km.
NETWORK Speed transmission = 1 Gb/s
Transmit Wavelength: 1310 nm
Receiver Sensitivity: -24 dBm
Emission Light Power: -8 dBm ~ -3 dBm
Transmission medium/ Single-Mode fiber 9/125 um
Connector type/ LC
Operating Temperature/ 0°C ~ 70°C
|
83 |
|
NOVUS
LED MONITOR
NVM-522LCD.
Made in POLAND
|
NOVUS MONITOR NVM-522LCD
Dedicated to permanent operation (24/7)
LED backlight Function preventing from burning-in
static images on the LCD panel
Panel Type/ TFT LED backlight
Screen Size (Diagonal)/ 21.5"
Panel Resolution/ 1920 x 1080
Format/ 16:9 Brightness/ 250 cd/m2
Contrast Ratio/ 1000:1
Viewing Angle (H/V)/ 85°/80°
Response Time/ 5 ms Display Color/ 16.7 mln
OTHER FUNCTIONS OSD/ languages: Polish,
English, Russian, others
Built-in Speakers/ 2 x 1 W
Digital Filter/ 2D
INTERFACES Video Input/ 1 x VGA 1 x HDMI
Audio Input/ 1 x Jack stereo (loop-through) ,
1 x HDMI (stereo)
INSTALLATION PARAMETERS Dimensions (mm)/ 517 (W) x 376 (H) x 185 (D) Weight/ 3.3 kg Case/ black, plastic Power Supply/ 100 ~ 240 VAC Power Consumption/ 29 W Operating Temperature/ 0°C ~ 40°C Mounting Standard/ VESA 100 x 100 mm
|
512 |
