UPS APC SMART SRT 1500VA RM 230V
UPS APC SMART SRT 1500VA RM 230V
|
UPS APC SMART 1500VA
CAPACITY : Rating 1500VA
Rack Height: 2U
Input Voltage: 100 - 275V
Voltage Range 176 - 275V
Voltage Regulation (Batt. Mode) +/-10%
Frequency: 40/70 Hz +/- 3 Hz Auto-sensing
Frequency Regulation(Batt. Mode) +/-3Hz
BATTERY : APC Replacement Battery Cartridge #155
Output Waveform Modified Sine Wave
Max Configurable Power (Watts)/1.5kWatts / 1.5kVA/Output Voltage Distortion/Less than 2 %/Output Frequency (sync to mains)/50/60 Hz +/- 3 Hz Sync to mains/Other Output Voltages/220 V, 240 V/Load Crest Factor/3 : 1/Topology/Double conversion online/Waveform type/Sine wave/Bypass/Built-in bypass/Input/Input frequency/40 - 70 Hz Auto-sensing/Input voltage range for main operations/100 - 275 40% load, 176 - 275 Full loadV/Number of Power Cords/1/Other Input Voltages/220 V, 240 V/Batteries & Runtime/Battery type/Lead-acid battery/Included Battery Modules/1/Typical recharge time/3hour(s)/Replacement Battery/APCRBC155/Expected Battery Life (years)/3 - 5/RBC Quantity/1/Battery Charge Power (Watts)/108 Watts/Extendable Run Time/1/Runtime/View Runtime Graph/Communications & Management/Interface Port(s)/RJ-45 Serial, Smart-Slot, USB/Control panel/Multifunction LCD status and control console/Audible Alarm/Audible and visible alarms prioritized by severity/Emergency Power Off (EPO)/Yes/Available SmartSlot™ Interface Quantity/1/Surge Protection and Filtering/Surge energy rating/432Joules/Physical/Maximum Height/85MM, 8.5CM/Maximum Width/432MM, 43.2CM/Maximum Depth/505MM, 50.5CM/Net Weight/21.0KG/Shipping weight/29.6KG/Shipping Height/246MM, 24.6CM/Shipping Width/594MM, 59.4CM/Shipping Depth/749MM, 74.9CM/Color/Black/Units per Pallet/12.0/Environmental/Operating Temperature/0 - 40 °C/Operating Relative Humidity/0 - 95 (Non-condensing) %/Operating Elevation/0 - 3048meters/Storage Temperature/-20 - 50 °C/Storage Relative Humidity/0 - 95 (Non-condensing) %/Storage Elevation/0 - 15240meters/Audible noise at 1 meter from surface of unit/50.0dBA/Online thermal dissipation/317.0BTU/hr/Protection Class/IP20/Conformance/Approvals/CE, EAC/Standard warranty/3 years repair or replace (excluding battery) and 2 years for battery/D/
|
1642 |
|

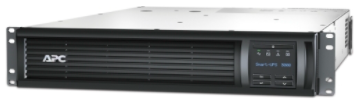

UPS APC SMART 3000VA(SMT3000RMI2UNC)
UPS APC SMART 3000VA(SMT3000RMI2UNC)
|
UPS APC SMART 3000VA
CAPACITY : Rating 3000VA
Rack Height: 2U
Input Voltage: 151 - 302 Adjustable
Voltage Range 160 - 286V
Voltage Regulation (Batt. Mode) +/-10%
Frequency: 50/60 Hz +/- 3 Hz Auto-sensing
Frequency Regulation(Batt. Mode) +/-3Hz
BATTERY : APC Replacement Battery Cartridge #43
Output Waveform Modified Sine Wave
Max Configurable Power (Watts)/2.7kWatts / 3.0kVA/Output Voltage Note/Configurable for 220 : 230 or 240 nominal output voltage/Output Frequency (sync to mains)/50/60 Hz +/- 3 Hz Sync to mains/Other Output Voltages/220 V, 240 V/Topology/Line interactive/Waveform type/Sine wave/Transfer Time/4 ms typical/Input/Input frequency/50/60 Hz +/- 3 Hz Auto-sensing/Input voltage range for main operations/151 - 302 Adjustable, 160 - 286V/Number of Power Cords/1/Other Input Voltages/220 V, 240 V/Batteries & Runtime/Battery type/Lead-acid battery/Typical recharge time/3hour(s)/Replacement Battery/RBC43/Expected Battery Life (years)/3 - 5/RBC Quantity/1/Battery Charge Power (Watts)/182 Watts/Runtime/View Runtime Graph/Efficiency/View Efficiency Graph/Communications & Management/Interface Port(s)/RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB/Pre-Installed SmartSlot™ Cards/AP9631/Control panel/LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console/Audible Alarm/Alarm when on battery : distinctive low battery alarm : configurable delays/Emergency Power Off (EPO)/Optional/Surge Protection and Filtering/Surge energy rating/320Joules/Physical/Maximum Height/86MM, 8.6CM/Maximum Width/480MM, 48.0CM/Maximum Depth/683MM, 68.3CM/Net Weight/44.19KG/Shipping weight/51.59KG/Shipping Height/254MM, 25.4CM/Shipping Width/600MM, 60.0CM/Shipping Depth/980MM, 98.0CM/Color/Black/Units per Pallet/8.0/Environmental/Operating Temperature/0 - 40 °C/Operating Relative Humidity/0 - 95 %/Operating Elevation/0 - 3048meters/Storage Temperature/-15 - 40 °C/Storage Relative Humidity/0 - 95 %/Storage Elevation/0 - 15240meters/Audible noise at 1 meter from surface of unit/55.0dBA/Online thermal dissipation/348.0BTU/hr/Conformance/Approvals/CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE/Standard warranty/3 years repair or replace (excluding battery) and 2 years for battery/Sustainable Offer Status/RoHS/Compliant/
|
3920 |
