EQUIPMENT OFFERED BY US

AHD CCTV IP CCTV Fire Alarm System Access Control Public Adress Accessories

AHD CCTV


AHD/FULL HD EQUIPMENT

PRICE US Dollar

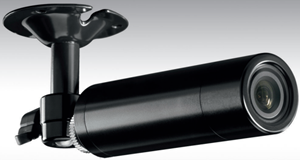

BOSCH   HIGH RESOLUTION MINI BULLET CAMERA

novus

VTC-206

High Resolution Mini Bullet Camera VTC-206 Ultra high resolution 960H (1/3“) sensor Wide field of view Indoor and outdoor applications Discreet and easy mounting The VTC-206 Mini Bullet Cameras provide reliable video surveillance in a rugged, yet compact enclosure. The high performance 960H 1/3‑inch CCD sensor provides a resolution of 720TVL. The cameras are suitable for indoor and outdoor applications. Models are available with a 3.6 mm lens to cover a variety of applications. The VTC-206 includes a versatile mounting bracket and three mounting screws suitable for soft walls, surfaces and ceilings. Constructed of anodized aluminum, the VTC-206 cameras are compact and discreet, providing round the clock surveillance. The cameras are true plug-and-play. No focus adjustment is needed, and the camera’s settings auto-adjust to the scene when power is applied. Video System PAL or NTSC Effective pixels (H x V) 976 x 582 (PAL) 976 x 494 (NTSC) Image Sensor 960H, 1/3" CCD, sensor resolution 720TVL Electronics shutter 1/50 to 1/120,000 s (PAL) 1/60 to 1/120,000 s (NTSC) Output Signal 1 VPP composite video, 75 ohm Output connection BNC connector S/N Ratio Greater than 50 dB Gamma 0.45 Minimum Illumination 0.1 lx at F2.0 / 30IRE Lens 3.6 mm fixed Mechanical Housing Compact, water resistant Construction Robust aluminum Weight 79 g (0.174 lb) approximately Electrical Power 12 VDC, 83 mA max. Power Supply Not included Environmental Operational Temp. -10 °C to +50 °C (+14 °F to +122 °F) Storage Temp. -20 °C to +60 °C (-4 °F to +140 °F) Environment IP67 certified Certifications and approvals Region Certification Europe CE Standards ANSI C63.4: 2003 FCC Part 15 subpart B, Class A Digital Devices UL 60065, 7th Edition. 2007-12-11 CAN/CSA-C22.2 No. 60065-03, 1st Edition, 2006-04 + A1:2006 EN55022:2006, Class A EN50130-4:1995 +A2:2003 EN61000-3-2:2006 EN61000-3-3:2008 LVD 2006/95/EC EN60065:2002 + A1:2006 + A11:2008 IP67, IEC 60529 (2001)

60

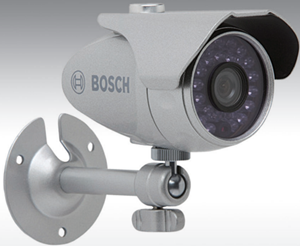

BOSCH   INTEGRATED IR BULLET CAMERA

novus

VTi-214 (WZ14)

Integrated IR Bullet Camera**Reliable 24/7 day and night surveillance,*Night vision in zero lux at 15 m (49 ft)*Wide angle viewing*Discreet outdoor operation*Quick installation**The WZ14 provides reliable day and night surveillance in a compact, water resistant design that integrates 30 infrared LEDs for 15 m (49 ft) of night*vision.*Incorporating a SuperHAD 1/3 in CCD, the camera*delivers 380 TVL of color imaging during day and*active-infrared monochrome at night. The 30 integrated infrared LEDs deliver up to15 m (49 ft) of*night vision for effective 24/7 performance. The*photocell-controlled LEDs ensure accurate on/off*switching and help increase energy efficiency.*For indoor and outdoor environments, the WZ14 is*a quick and easy Plug-and-Play solution for 24/7*day and night surveillance.***Video*CCD Image Sensor 1/3 in SuperHAD CCD*Type Color / monochrome, video level switching*Resolution 380 TVL*Effective Pixels (H x V) PAL: 500 x 582, NTSC: 510 x 492*Night-Time Sensitivity 0 lux (infrared on)*Electronics Iris 1/50 to 1/100,000 s (PAL),*1/60 to 1/100,000 s (NTSC)*Output Signal 1 Vpp composite video, 75 ohm*S/N Ratio Greater than 45 dB*Gamma 0.45*Lens Fixed 4 mm lens*LEDs Infrared array, photocell-controlled*Wavelength 850 nm*Number of LEDs 30*Electrical*Voltage 12 VDC*Power Draw 250 mA to 420 mA.*Power Supply Not included*Mechanical*Construction Aluminum*Finish Silver-gray*Sunshield Included*Bracket Pan-tilt bracket included*Weight 0.39 kg (0.86 lb)*Dimensions 64.5 x 67 x 112 mm*(2.5 x 2.6 x 4.4 in.)*Environmental*Operation Temperature*Range*-30 ºC to +50 ºC (-22 ºF to +122 ºF)*Environment IP67 compliant*Certifications and approvals*Region Certification*Europe CE*Standards*ANSI C63.4: 2003*FCC Part 15 subpart B, Class A*UL 60065, 7th Edition. 2007-12-11*CAN/CSA-C22.2 No. 60065-03, 1st Edition,*2006-04 + A1:2006*EN55022:2006, Class A*EN50130-4:1995+A1:1998+A2:2003*EN61000-3-2:2006*EN61000-3-3:1995 + A1:2001 + A2:2005*LVD 2006/95/EC*EN60065:2002 + A1:2006 + A11:2008*IP67, IEC 60529 (2001)

65

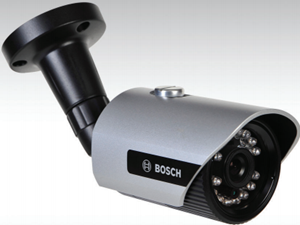

BOSCH   OUTDOOR IR BULLET CAMERAS

novus

AN BULLET 2000 (VTI-2075)

Outdoor IR bullet cameras*AN bullet 2000**Ultra high resolution 960H (1/3“) sensor*Digitally Extended Dynamic Range*Digital noise reduction*Integrated IR LEDs for 15 m of night vision*Vandal and water resistant enclosure**These outdoor IR bullet cameras are stylish surveillance cameras that offer excellent resolution in*variable lighting conditions. The high performance*960H 1/3‑inch CCD sensor provides a resolution of*720TVL. The water resistant (IP66 rated) and vandal resistant (IK08 rated) housing ensures reliable*video surveillance in a variety of indoor and outdoor applications. The camera is available with a*3.6 mm fixed lens. The integrated infrared LEDs*provide up to 15 m (50 ft) of night vision.***Technical specifications*Image Sensor 960H, 1/3" CCD, sensor resolution 720TVL*System PAL or NTSC*Total pixels (H x V) 1020 x 596 (PAL)*1020 x 508 (NTSC)*Effective pixels (H x V) 976 x 582 (PAL)*976 x 494 (NTSC)*Lens type Fixed lens built-in*Focal length 3.6 mm*Lens aperture F2.0*Day/Night switching True Day/Night mechanical filter*Video Output Composite: 1 Vpp, 75 Ohm*Supply Voltage 12 VDC*Power Consumption 370 mA (12 VDC) max.*Sync. System Internal sync.*S/N Ratio (AGC off) 50 dB min.*Sensitivity B/W (with IR) 0.0 lx*Electronic shutter 1/50 – 1/10,000 (PAL)*1/60 – 1/10,000 (NTSC)*IR illumination IR LEDs, 850 nm*IR range Up to 15 m (50 ft)*IR angle 44° / 44° (H/V)*Mounting Cable-managed mounting bracket included*Dimensions (Ø x L) 59 x 85 mm (2.32 x 3.34 in)*Weight*(including bracket)*0.54 kg (1.19 lb)*Housing Casted / machined aluminum*Color Camera / bracket: Black RAL9017*Sunshield: Silver grey RAL9006*Water/dust protection IP66*Impact resistance IK08*Operating Temperature -30 ºC to +50 ºC (-22 ºF to +122 ºF)*Storage Temperature -20 °C to +60 °C*(-4 ºF to +140 ºF)*Storage Humidity 20% to 90% RH*

178

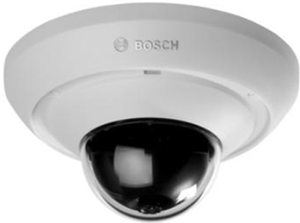

BOSCH   MINI DOME CAMERAS

novus

VUC-1055-F210/F211

Make: Bosch * Model code: VUC-1055-F211 * Chip Inch Size ": 1/4 inch*Colour Type: Colour / Monochrome*Resolution TVL: 720**Manufacturer Bosch Security Systems*Model code VUC-1055-F211*Chip Inch Size " 1/4 inch*Colour Type Colour / Monochrome*Resolution TVL 720*Sensitivity lux 0.43 lux*Electrical Specifications Voltage: 12 V DC*Power Consumption: 1.2 W*Back Light Compensation Yes*Auto Gain Control Yes*White Balance Yes*S/ N (Signal/ Noise) Ratio dB 55 dB*Synchronisation Internal*Signal Mode PAL*Mini or Compact Compact*Physical Specifications Dimension mm: 105 x 56*Weight g: 125*Environmental Specifications Operating Temperature oC: -20 ~ +45*Operating Humidity %: 20 ~ 90*Additional info Bosch VUC-1055-F211 is an analogue video surveillance camera for indoor use. The flexible, compact design allows the camera to be used in a variety of applications. The camera is easy to install and has a menu system where functions such as privacy and motion detection zones can be set. It has a discreet microdome housing with digital noise reduction.*

185

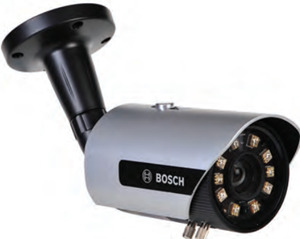

BOSCH   DINION AN BULLET 4000

novus

VTI-4085-V511

DINION AN bullet 4000 WDR VTI-4085-V511 Ultra high resolution 960H (1/3“) DS sensor True Wide Dynamic Range (WDR) Enhanced digital noise reduction Integrated IR LEDs for 100 m of night vision Vandal and water resistant enclosure These Wide Dynamic Range (WDR) outdoor IR bullet cameras are compact, stylish surveillance cameras that offer excellent resolution in variable lighting conditions. The high performance 960H 1/3‑inch Double Scan (DS) CCD sensor provides a resolution of 720TVL. The WDR function ensures the best image performance under difficult (high contrast) lighting conditions. The water resistant (IP66 rated) and vandal resistant (IK08 rated) housing ensures reliable video surveillance in a variety of indoor and outdoor applications. Image Sensor 960H, 1/3" DS CCD, sensor resolution 720TVL System PAL or NTSC Total pixels (H x V) 1020 x 596 (PAL) 1020 x 508 (NTSC) Effective pixels (H x V) 976 x 582 (PAL) 976 x 494 (NTSC) Lens type Varifocal auto Iris lens built-in Focal length 5 to 50 mm Lens aperture F1.4 – 360 Lens adjustment External Day/Night switching True Day/Night mechanical filter Water/dust protection IP66 Impact resistance IK08 Operating Temperature -30 ºC to +50 ºC (-22 ºF to +122 ºF) Video Output Composite: 1 Vpp, 75 Ohm Supply Voltage 12 VDC or 24 VAC Power Consumption 730 mA (12 VDC) 9.1 W max. (24 VAC) Sync. System Internal sync., Line-lock S/N Ratio (AGC off) 50 dB min. Sensitivity (F1.4, 50IRE, AGC max.) Color: 0.15 lx (DSS 0.0005 lx) B/W (with IR) 0.0 lx Electronic shutter 1/50 – 1/10,000 (PAL) 1/60 – 1/10,000 (NTSC) AGC 0 to 20 Digital Slow Shutter (DSS) Off, 2x to 512x Digital Noise Reduction (DNR) Off, 2DNR, 3DNR White Balance ATW, Push, User1, User2, Anti CR, Manual, Push lock Light compensation OFF, BLC, HLC, WDR WDR 54 dB Day/Night IRED, Auto, Color, B/W Burst On, Off IR illumination 10 on-board IR LEDs, 850 nm IR range Up to 100 m (330 ft) IR angle 39° / 24° (H/V) Digital zoom Off, 2x, 3x, 4x, 6x, 8x, 16x Digital Image Stabilizer (DIS) On, Off Motion detection On, Off (4 programmable zones) Privacy On, Off (15 programmable zones) Mirror Off, H-flip, V-flip, HV-flip Sharpness 0 ‑ 15 Gamma 0.38, 0.42, 0.45, 0.5, 0.55, 0.63, 0.71, 0.83 OSD language English, Japanese, German, French, Russian, Portuguese, Spanish, Simplified Chinese Mounting Cable-managed mounting bracket included

285

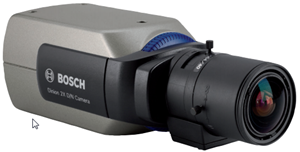

BOSCH   DINION2X SERIES DAY/NIGHT CAMERA

novus

LTC-0498

DINION2X SERIES DAY/NIGHT CAMERA LTC-0498 20-bit Image Processing Technology CCD sensor with Wide Dynamic Range Dynamic engine with Smart BLC Detail enhancement True Day/Night performance with switchable filter Region Certification Europe CE Declaration of Conformity USA UL FCC Declaration of Conformity Canada CSA LTC 0498/51 230 VAC ±10% 50 Hz Signal-to-Noise Ratio >50 dB Video Output Composite video 1 Vpp, 75 ohm Synchronization Internal, Line Lock, HV-lock and Genlock (Burst lock) selectable Shutter Auto (1/50 [1/60] to 1/10000) selectable Auto (1/50 [1/60] to 1/50000) automatic flickerless, fixed selectable Sensitivity up Adjustable from Off up to 10x Day/Night Color, Mono, Auto Auto Black Automatic continuous, Off Dynamic engine XF-Dynamic, 2X-Dynamic, SmartBLC Dynamic range 120 dB (20-bit image processing) Dynamic Noise Reduction Auto, On/off selectable Sharpness Sharpness enhancement level selectable SmartBLC On (includes 2X-Dynamic ) / Off AGC AGC On or Off (0 - 30 dB) selectable Peak White Invert On/Off White Balance ATW, ATWhold and manual (2500 to 10000K) Alarm Output VMD or Bilinx Alarm Input (TTL) Profile switching, +3.3 V nominal, +40 VDC max. Alarm Output Relay 30 VAC or +40 VDC, Max 0.5 A continuous, 10 VA External Synchronization Input 75 ohm or high impedance selectable Cable Compensation Up to 1000 m (3000 ft) coax without external amplifiers (automatic set-up in combination with Bilinx coaxial communication) Camera ID 17 character editable string, position selectable Test Pattern Generator Color bars 100%, Grayscale 11-step, Sawtooth 2H, Checker board, Cross hatch, UV plane Lens Types Manual, DC- and Video-Iris auto-detect with override DC-iris drive: max. 50 mA continuous Video-iris: 11.5 VDC ±0.5, max. 50 mA continuous Lens Mount CS (max lens protrusion 5 mm, 0.2 inch), C-mount compatible (with optional adapter ring) Modes 6 preset programmable modes Remote Control Bilinx coaxial bi-directional communication Video Motion Detection One area, fully programmable Privacy Masking Four independent areas, fully programmable Controls OSD with soft-key operation (multi-lingual)

260

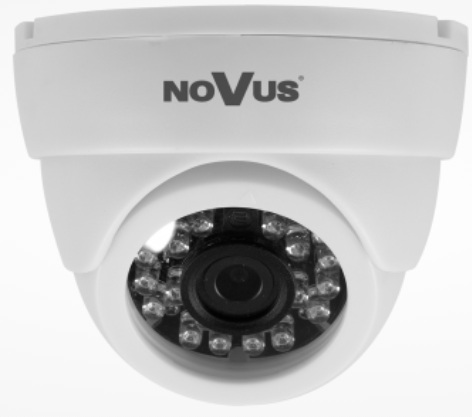

NOVUS DOME AHD CAMERA novus NVAHD-1DN3101D/IR-1
Made in POLAND

DOME AHD CAMERA NVAHD-1DN3101D/IR-1 KEY FEATURES: D/N function - IR cut filter /resolution 720p / Lens: fixed focal, f=3.6 mm/F1.2 / optional UTC remote controller / Min. Illumination from 0.001 lx (0 lx, IR on) / IR LED, range up to 15 m IMAGE Image Sensor- CMOS sensor 1/4” APTINA Operating mode- AHD 720p, analog 960H* Number of Effective Pixels- 1280 (H) x 800 (V) Resolution- 720p Min. Illumination- 0.03 lx/F1.2 - color mode, 0.001 lx/F1.2 - B/W mode, 0 lx (IR on) - B/W mode S/N Ratio- > 60 dB (AGC off) Electronic Shutter- auto: 1/50 s ~ 1/100000 s Digital Slow Shutter (DSS)- up to 30x * High Light Compensation (HLC)- yes * Wide Dynamic Range (WDR)- yes * Digital Noise Reduction (DNR)- 2D, 3D * Defog Function (F-DNR)- yes * LENS Lens Type- fixed focal, f=3.6 mm/F1.2 DAY/NIGHT Switching Type- mechanical IR cut filter Switching Mode- auto, manual * Switching Level Adjustment- yes * Switching Delay- 0 ~ 60 s * Visible Light Sensor- yes OTHER FUNCTIONS OSD- languages: Polish, English, Russian, others * Privacy Zones- 4 * Motion Detection- yes Motion Detection- * Image Processing- 180˚ image rotation, sharpening, mirror effect * Remote control- Yes (optional UTC remote control)* IR LED LED Number- 24 Range- 15 m Angle- 75° INTERFACES Video Output- BNC, 1.0 Vp-p, 75 Ohm INSTALLATION PARAMETERS Dimensions (mm)- 92 (Ф) x 75 (H) Weight- 0.15 kg Enclosure- plastic, white Power Supply- 12 VDC Power Consumption- 0.9 W, 3 W (IR on) Operating Temperature- -20°C ~ 50°C

35

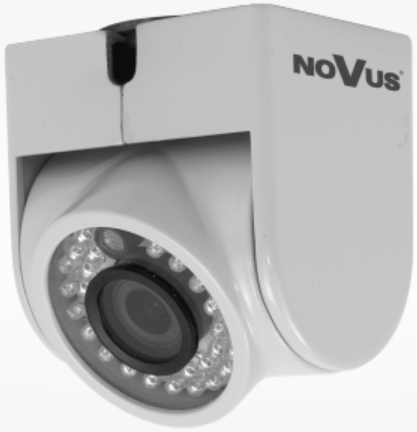

NOVUS VANDAL PROOF AHD CAMERA www.novuscctv.com NVAHD-1DN3103V/IR-1
Made in POLAND

NOVUS VANDAL PROOF AHD CAMERA NVAHD-1DN3103V/IR-1 Image Sensor/ CMOS sensor 1/4” APTINA Operating mode/ AHD 720p, analog 960H* Number of Effective Pixels/ 1280 (H) x 800 (V) Resolution/ 720p Min. Illumination/ 0.03 lx/F1.2 - color mode, 0.0013 lx/F1.2 - B/W mode, 0 lx (IR on) - B/W mode S/N Ratio/ > 60 dB (AGC off) Electronic Shutter/ auto: 1/50 s ~ 1/100000 s Digital Slow Shutter (DSS)/ up to 30x * High Light Compensation (HLC)/ yes * Wide Dynamic Range (WDR)/ yes * Digital Noise Reduction (DNR)/ 2D, 3D * Defog Function (F-DNR)/ yes * LENS Lens Type/ fixed focal, f=3.6 mm/F1.2 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual * Switching Level Adjustment/ yes * Switching Delay/ 0 ~ 60 s * Visible Light Sensor/ yes OTHER FUNCTIONS OSD/ languages: Polish, English, Russian, others * Privacy Zones/ 4 * Motion Detection/ yes Motion Detection/ * Image Processing/ 180˚ image rotation, sharpening, mirror effect * Remote control/ Yes (optional UTC remote control)* IR LED LED Number/ 36 Range/ 15 m Angle/ 75° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm INSTALLATION PARAMETERS Dimensions (mm)/ 55 (Ф) x 60 (H) Weight/ 0.21 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof aluminium, ivory Power Supply/ 12 VDC Power Consumption/ 1 W, 2.1 W (IR on) Operating Temperature/ -20°C ~ 50°C

32

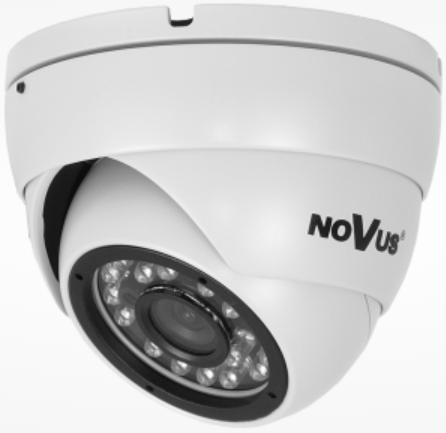

NOVUS VANDAL PROOF AHD CAMERA www.novuscctv.com

NVAHD-1DN5101V/IR-1
Made in POLAND

NOVUS VANDAL PROOF AHD CAMERA NVAHD-1DN5101V/IR-1 Image Sensor//CMOS sensor 1/3” SONY//Operating mode//AHD 720p, analog 960H//Number of Effective Pixels//1280 (H) x 1024 (V)//Resolution//720p//Min. Illumination//0.5 lx/F2.0 - color mode,//0.01 lx/F2.0 - B/W mode,//0.001 lx/F2.0 - color mode (DSS),//0.0001 lx/F2.0 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio//> 52 dB (AGC off)//Electronic Shutter//auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS)//up to 30x//High Light Compensation (HLC)//yes//Wide Dynamic Range (WDR)//yes//Digital Noise Reduction (DNR)//2D, 3D//Defog Function (F-DNR)//yes//LENS/Lens Type//fixed focal, f=3.6 mm/F2.0//DAY/NIGHT/Switching Type//mechanical IR cut filter//Switching Mode//auto, manual//Switching Level Adjustment//yes//Switching Delay//0 ~ 60 s//Visible Light Sensor//yes//OTHER FUNCTIONS/OSD//languages: Polish, English, Russian, others//Privacy Zones//4//Motion Detection//yes//Image Processing//180˚ image rotation, sharpening, mirror effect//Remote control//Yes (optional UTC remote control)*//IR LED/LED Number//24//Range//15 m//Angle//80°//INTERFACES/Video Output//BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm)//93 (Ф) x 75 (H)//Weight//0.33 kg//Degree of Protection//IP 65 (details in the user’s manual)//Enclosure//vandalproof aluminium, ivory//Power Supply//12 VDC//Power Consumption//1.2 W,//3.2 W (IR on)//Operating Temperature//-30°C ~ 40°C/

38

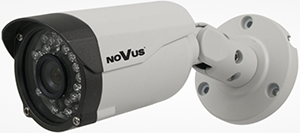

NOVUS BULLET AHD CAMERA www.novuscctv.com NVAHD-1DN5101H/IR-1
Made in POLAND

NOVUS BULLET AHD CAMERA NVAHD-1DN5101H/IR-1 /Image Sensor /CMOS sensor 1/3” SONY//Operating mode /AHD 720p, analog 960H//Number of Effective Pixels /1280 (H) x 1024 (V)//Resolution /720p//Min. Illumination /0.5 lx/F2.0 - color mode,//0.01 lx/F2.0 - B/W mode,//0.001 lx/F2.0 - color mode (DSS),//0.0001 lx/F2.0 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio /> 52 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS) /up to 30x//High Light Compensation (HLC) /yes//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D, 3D//Defog Function (F-DNR) /yes//LENS/Lens Type /fixed focal, f=3.6 mm/F2.0//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Level Adjustment /yes//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/OSD /languages: Polish, English, Russian, others//Privacy Zones /4//Motion Detection /yes//Image Processing /180˚ image rotation, sharpening, mirror effect//Remote control /Yes (optional UTC remote control)*//IR LED/LED Number /24//Range /15 m//Angle /80°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /with bracket: 70 (W) x 70 (H) x 173 (L)//Weight /0.39 kg//Degree of Protection /IP 66 (details in the user’s manual)//Enclosure /aluminium, ivory, fully cable managed wall mount bracket in-set included//Power Supply /12 VDC//Power Consumption /1.2 W,//3.2 W (IR on)//Operating Temperature /-30°C ~ 40°C/

47

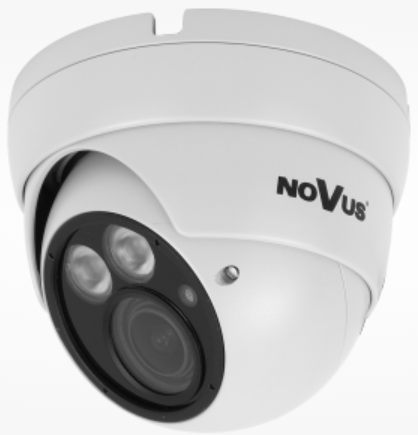

NOVUS VANDAL PROOF AHD CAMERA www.novuscctv.com NVAHD-1DN5102V/IR-1
Made in POLAND

NOVUS VANDAL PROOF AHD CAMERA NVAHD-1DN5102V/IR-1 Image Sensor /CMOS sensor 1/3” SONY//Operating mode /AHD 720p, analog 960H//Number of Effective Pixels /1280 (H) x 1024 (V)//Resolution /720p//Min. Illumination /0.25 lx/F1.4 - color mode,//0.005 lx/F1.4 - B/W mode,//0.0005 lx/F1.4 - color mode (DSS),//0.00005 lx/F1.4 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio /> 52 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS) /up to 30x//High Light Compensation (HLC) /yes//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D, 3D//Defog Function (F-DNR) /yes//LENS/Lens Type /varifocal, f=2.8 ~ 12 mm/F1.4//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Level Adjustment /yes//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/OSD /languages: Polish, English, Russian, others//Privacy Zones /4//Motion Detection /yes//Image Processing /180˚ image rotation, sharpening, mirror effect//Remote control /Yes (optional UTC remote control)*//IR LED/LED Number /2//Range /30 m//Angle /100°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /120 (Ф) x 98 (H)//Weight /0.79 kg//Degree of Protection /IP 66 (details in the user’s manual)//Enclosure /vandalproof aluminium, ivory//Power Supply /12 VDC//Power Consumption /1.5 W,//4.5 W (IR on)//Operating Temperature /-30°C ~ 40°C/

63

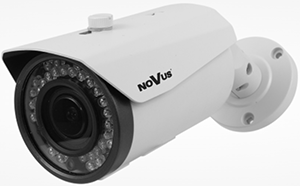

NOVUS BULLET AHD CAMERA www.novuscctv.com NVAHD-1DN5102H/IR-1
Made in POLAND

NOVUS VANDAL PROOF AHD CAMERA NVAHD-1DN5102H/IR-1 Image Sensor /CMOS sensor 1/3” SONY//Operating mode /AHD 720p, analog 960H//Number of Effective Pixels /1280 (H) x 1024 (V)//Resolution /720p//Min. Illumination /0.25 lx/F1.4 - color mode,//0.005 lx/F1.4 - B/W mode,//0.0005 lx/F1.4 - color mode (DSS),//0.00005 lx/F1.4 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio /> 52 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS) /up to 30x//High Light Compensation (HLC) /yes//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D, 3D//Defog Function (F-DNR) /yes//LENS/Lens Type /varifocal, f=2.8 ~ 12 mm/F1.4//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Level Adjustment /yes//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/OSD /languages: Polish, English, Russian, others//Privacy Zones /4//Motion Detection /yes//Image Processing /180˚ image rotation, sharpening, mirror effect//Remote control /Yes (optional UTC remote control)*//IR LED/LED Number /2//Range /30 m//Angle /100°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /120 (Ф) x 98 (H)//Weight /0.79 kg//Degree of Protection /IP 66 (details in the user’s manual)//Enclosure /vandalproof aluminium, ivory//Power Supply /12 VDC//Power Consumption /1.5 W,//4.5 W (IR on)//Operating Temperature /-30°C ~ 40°C/

63

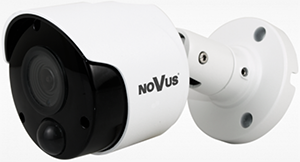

NOVUS BULLET AHD MULTISTANDARD CAMERA
www.novuscctv.com NVAHD-2DN3201MH/IR-1-PIR
Made in POLAND

NOVUS BULLET AHD MULTISTANDARD CAMERA NVAHD-2DN3201MH/IR-1-PIR /Image Sensor /CMOS sensor 1/2.7” SMARTSENS//Operating mode /AHD 1080p, TVI 1080p, CVI 1080p, analog 960H//Number of Effective Pixels /1936 (H) x 1096 (V)//Resolution /1080p//Min. Illumination /0.01 lx/F2.0 - color mode,//0 lx (IR on) - B/W mode//S/N Ratio /> 40 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D//LENS/Lens Type /fixed focal, f=2.8 mm/F2.0//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/System /PAL, NTSC//OSD /languages: Polish, English, Russian, others//PIR sensor /range up to 8 m//Image Processing /Defective Pixel Correction (DPC), 180˚ image rotation, mirror effect, vertical flip, horizontal flip//Remote control /Yes (COAX protocol)//IR LED/LED Number /18//Range /20 m//Angle /60°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /with bracket: 71 (Ф) x 138 (L)//Weight /0.3 kg//Degree of Protection /IP 66 (details in the user’s manual)//Enclosure /aluminium, white, fully cable managed wall mount bracket in-set included//Power Supply /12 VDC//Power Consumption /1 W,//5 W (IR on)//Operating Temperature /-30°C ~ 55°C/

65


NOVUS VANDAL PROOF AHD MULTISTANDARD CAMERA WITH PIR MOTION SENSOR
www.novuscctv.com
NVAHD-2DN3201MV/IR-1-PIR
Made in POLAND

NOVUS VANDAL PROOF AHD MULTISTANDARD CAMERA WITH PIR MOTION SENSOR NVAHD-2DN3201MV/IR-1-PIR /Image Sensor /CMOS sensor 1/2.7” SMARTSENS//Operating mode /AHD 1080p, TVI 1080p, CVI 1080p, analog 960H//Number of Effective Pixels /1936 (H) x 1096 (V)//Resolution /1080p//Min. Illumination /0.01 lx/F2.0 - color mode,//0 lx (IR on) - B/W mode//S/N Ratio /> 40 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D//LENS/Lens Type /fixed focal, f=2.8 mm/F2.0//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/System /PAL, NTSC//OSD /languages: Polish, English, Russian, others//PIR sensor /range up to 8 m//Image Processing /Defective Pixel Correction (DPC), 180˚ image rotation, mirror effect, vertical flip, horizontal flip//Remote control /Yes (COAX protocol)//IR LED/LED Number /16//Range /20 m//Angle /60°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /100 (Ф) x 90 (H)//Weight /0.4 kg//Degree of Protection /IP 66 (details in the user’s manual)//Enclosure /vandalproof aluminium, white//Power Supply /12 VDC//Power Consumption /1 W,//5 W (IR on)//Operating Temperature /-30°C ~ 55°C/

67

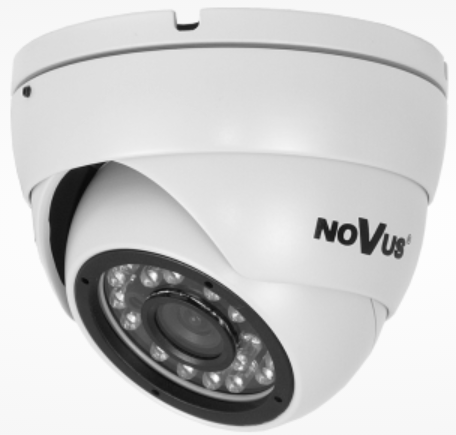

NOVUS VANDAL PROOF AHD CAMERA
www.novuscctv.com
NVAHD-2DN5101V/IR-1-PIR
Made in POLAND

NOVUS VANDAL PROOF AHD CAMERA NVAHD-2DN5101V/IR-1-PIR Image Sensor /CMOS sensor 1/2.9” SONY//Operating mode /AHD 1080p, analog 960H//Number of Effective Pixels /1920 (H) x 1080 (V)//Resolution /1080p//Min. Illumination /0.5 lx/F2.0 - color mode,//0.01 lx/F2.0 - B/W mode,//0.001 lx/F2.0 - color mode (DSS),//0.0001 lx/F2.0 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio /> 52 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS) /up to 30x//High Light Compensation (HLC) /yes//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D, 3D//Defog Function (F-DNR) /yes//LENS/Lens Type /fixed focal, f=3.6 mm/F2.0//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Level Adjustment /yes//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/OSD /languages: Polish, English, Russian, others//Privacy Zones /4//Motion Detection /yes//Image Processing /180˚ image rotation, sharpening, mirror effect//Remote control /Yes (optional UTC remote control)*//IR LED/LED Number /24//Range /15 m//Angle /80°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /93 (Ф) x 75 (H)//Weight /0.33 kg//Degree of Protection /IP 65 (details in the user’s manual)//Enclosure /vandalproof aluminium, ivory//Power Supply /12 VDC//Power Consumption /1 W,//2.6 W (IR on)//Operating Temperature /-30°C ~ 40°C/

70

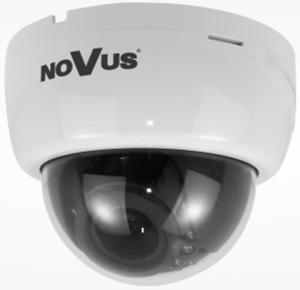

NOVUS DOME AHD CAMERA
www.novuscctv.com
NVAHD-2DN5102D/IR-1
Made in POLAND

NOVUS DOME AHD CAMERA NVAHD-2DN5102D/IR-1 /Image Sensor /CMOS sensor 1/2.9” SONY//Operating mode /AHD 1080p, analog 960H//Number of Effective Pixels /1920 (H) x 1080 (V)//Resolution /1080p//Min. Illumination /0.5 lx/F1.2 - color mode,//0.01 lx/F1.2 - B/W mode,//0.001 lx/F1.2 - color mode (DSS),//0.0001 lx/F1.2 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio /> 52 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS) /up to 30x//High Light Compensation (HLC) /yes//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D, 3D//Defog Function (F-DNR) /yes//LENS/Lens Type /varifocal, f=2.8 ~ 12 mm/F1.2//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Level Adjustment /yes//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/OSD /languages: Polish, English, Russian, others//Privacy Zones /4//Motion Detection /yes//Image Processing /180˚ image rotation, sharpening, mirror effect//Remote control /Yes (optional UTC remote control)*//IR LED/LED Number /24//Range /15 m//Angle /120°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /112 (Ф) x 87 (H)//Weight /0.17 kg//Enclosure /plastic, white//Power Supply /12 VDC//Power Consumption /1 W,//2.7 W (IR on)//Operating Temperature /-30°C ~ 40°C/

71


NOVUS VANDAL PROOF AHD CAMERA
www.novuscctv.com
NVAHD-2DN5102V/IR-1
Made in POLAND

NOVUS VANDAL PROOF AHD CAMERA NVAHD-2DN5102V/IR-1 Image Sensor /CMOS sensor 1/2.9” SONY//Operating mode /AHD 1080p, analog 960H//Number of Effective Pixels /1920 (H) x 1080 (V)//Resolution /1080p//Min. Illumination /0.5 lx/F1.2 - color mode,//0.01 lx/F1.2 - B/W mode,//0.001 lx/F1.2 - color mode (DSS),//0.0001 lx/F1.2 - B/W mode (DSS),//0 lx (IR on) - B/W mode//S/N Ratio /> 52 dB (AGC off)//Electronic Shutter /auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H)//Digital Slow Shutter (DSS) /up to 30x//High Light Compensation (HLC) /yes//Wide Dynamic Range (WDR) /yes//Digital Noise Reduction (DNR) /2D, 3D//Defog Function (F-DNR) /yes//LENS/Lens Type /varifocal, f=2.8 ~ 12 mm/F1.2//DAY/NIGHT/Switching Type /mechanical IR cut filter//Switching Mode /auto, manual//Switching Level Adjustment /yes//Switching Delay /0 ~ 60 s//Visible Light Sensor /yes//OTHER FUNCTIONS/OSD /languages: Polish, English, Russian, others//Privacy Zones /4//Motion Detection /yes//Image Processing /180˚ image rotation, sharpening, mirror effect//Remote control /Yes (optional UTC remote control)*//IR LED/LED Number /2//Range /30 m//Angle /100°//INTERFACES/Video Output /BNC, 1.0 Vp-p, 75 Ohm//INSTALLATION PARAMETERS/Dimensions (mm) /120 (Ф) x 98 (H)//Weight /0.79 kg//Degree of Protection /IP 66 (details in the user’s manual)//Enclosure /vandalproof aluminium, ivory//Power Supply /12 VDC//Power Consumption /1 W,//6 W (IR on)//Operating Temperature /-30°C ~ 40°C/

73

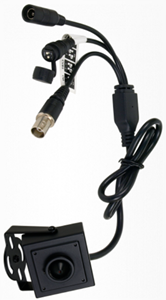

NOVUS NEW   SPECIAL PURPOSE AHD CAMERA
www.novuscctv.com
NVAHD-2ATM-4011
Made in POLAND




NOVUS SPECIAL PURPOSE AHD CAMERA NVAHD-2ATM-4011 Image Sensor: CMOS sensor 1/2.9” Operating mode: AHD 1080p, TVI 1080p, CVI 1080p, analog 960H Number of Effective Pixels: 1985 (H) x 1105 (V) Resolution: 1080p Min. Illumination: 0.001 lx/F2.5 - color mode S/N Ratio: > 52 dB (AGC off) Electronic Shutter: auto/manual: 1/25 s ~ 1/50000 s Digital Slow Shutter (DSS): up to 30x Wide Dynamic Range (WDR): yes Digital Noise Reduction (DNR): 2D, 3D Defog Function (F-DNR): yes LENS Lens Type: pinhole, f=3.7 mm/F2.5 DAY/NIGHT Switching Type: electronic D/N function Switching Mode: auto, manual Switching Level Adjustment: yes Switching Delay: 0 ~ 60 s OTHER FUNCTIONS OSD: languages: Polish, English, Russian, others Privacy Zones: 4 Motion Detection: yes Image Processing: 180˚ image rotation, mirror effect, negative, picture-freeze Remote control: Yes (COAX protocol) INTERFACES Video Output: BNC, 1.0 Vp-p, 75 Ohm INSTALLATION PARAMETERS Dimensions (mm): 36 (W) x 36 (H) x 24 (L) - sensor module Weight: 0.07 kg Power Supply: 12 VDC Power Consumption: 1 W Operating Temperature: -30°C ~ 45°C

83

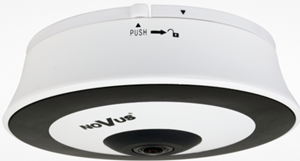

NOVUS VANDAL PROOF AHD MULTISTANDARD CAMERA WITH FISHEYE LENS
www.novuscctv.com
NVAHD-2DN5103MV/IR-1
Made in POLAND

Image Sensor/ CMOS sensor 1/2.9” SONY Operating mode/ AHD 1080p, TVI 1080p, CVI 1080p, analog 960H Number of Effective Pixels/ 1920 (H) x 1080 (V) Resolution/ 1080p Min. Illumination/ 0.1 lx/F1.4 - color mode, 0.05 lx/F1.4 - B/W mode, 0.005 lx/F1.4 - color mode (DSS), 0.0001 lx/F1.4 - B/W mode (DSS), 0 lx (IR on) - B/W mode S/N Ratio/ > 52 dB (AGC off) Electronic Shutter/ auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/25 s ~ 1/50000 s (analog 960H) Digital Slow Shutter (DSS)/ up to 30x High Light Compensation (HLC)/ yes Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes LENS Lens Type/ fisheye, f=1.6 mm/F1.4 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Switching Level Adjustment/ yes Switching Delay/ 0 ~ 60 s Visible Light Sensor/ yes OTHER FUNCTIONS System/ PAL, NTSC OSD/ languages: Polish, English, Russian, others Privacy Zones/ 4 Motion Detection/ yes Image Processing/ 180˚ image rotation, sharpening, mirror effect Remote control/ Yes (COAX protocol) IR LED LED Number/ 4 Range/ 5 m Angle/ 120° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm INSTALLATION PARAMETERS Dimensions (mm)/ 135 (Ф) x 49 (H) Weight/ 0.43 kg Degree of Protection/ IP 55 (details in the user’s manual) Enclosure/ vandalproof aluminium, white Power Supply/ 12 VDC Power Consumption/ 1 W, 6 W (IR on) Operating Temperature/ -30°C ~ 40°C

124

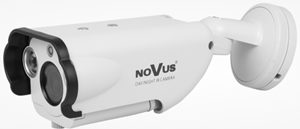

NOVUS BULLET AHD CAMERA
www.novuscctv.com
NVAHD-2DN5104H/IRH-2
Made in POLAND

NOVUS BULLET AHD CAMERA NVAHD-2DN5104H/IRH-2 Image Sensor/ CMOS sensor 1/3” SONY Operating mode/ AHD 1080p, analog 960H Number of Effective Pixels/ 1920 (H) x 1080 (V) Resolution/ 1080p Min. Illumination/ 0.5 lx/F1.2 - color mode, 0.01 lx/F1.2 - B/W mode, 0 lx (IR on) - B/W mode S/N Ratio/ > 80 dB (AGC off) Electronic Shutter/ auto/manual: 1/25 s ~ 1/50000 s (AHD), 1/50 s ~ 1/50000 s (analog 960H) Digital Slow Shutter (DSS)/ up to 30x High Light Compensation (HLC)/ yes Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 2D, 3D Defog Function (F-DNR)/ yes LENS Lens Type/ varifocal, f=2.8 ~ 12 mm/F1.2 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Switching Level Adjustment/ yes Switching Delay/ 0 ~ 60 s Visible Light Sensor/ yes OTHER FUNCTIONS OSD/ languages: Polish, English, Russian, others Privacy Zones/ 4 Motion Detection/ yes Image Processing/ 180˚ image rotation, sharpening, mirror effect Remote control/ Yes (optional UTC remote control)* IR LED LED Number/ 2 Range/ 40 m Angle/ 90° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm INSTALLATION PARAMETERS Dimensions (mm)/ with bracket: 109 (W) x 111 (H) x 259 (L) Weight/ 0.996 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ aluminium, white, fully cable managed wall mount bracket in-set included Power Supply/ 12 VDC, 24 VAC Power Consumption/ 1 W, 7 W (IR on), 14.2 W (IR and heater on) Operating Temperature/ -30°C ~ 50°C Built-in Heater/Fan/ yes/no

86

NOVUS VANDAL PROOF AHD MULTISTANDARD CAMERA
www.novuscctv.com
NVAHD-2DN5501MV/IR-1

NOVUS VANDAL PROOF AHD MULTISTANDARD CAMERA NVAHD-2DN5501MV/IR-1 Image Sensor/ CMOS sensor 1/2.9” SONY Operating mode/ AHD 1080p, AHD 720p, TVI 1080p, CVBS, CVI 1080p, CVI 720p, analog 960H Number of Effective Pixels/ 1920 (H) x 1080 (V) Resolution/ 1080p Min. Illumination/ 0.03 lx/F2.0 - color mode, 0 lx (IR on) - B/W mode S/N Ratio/ > 50 dB (AGC off) Electronic Shutter/ auto: 1/50 s ~ 1/50000 s Wide Dynamic Range (WDR)/ yes Digital Noise Reduction (DNR)/ 2D LENS Lens Type/ fixed focal, f=3.6 mm/F2.0 DAY/NIGHT Switching Type/ mechanical IR cut filter Switching Mode/ auto, manual Visible Light Sensor/ yes OTHER FUNCTIONS OSD/ languages: English Remote control/ Yes (COAX protocol or optional UTC remote control) IR LED LED Number/ 12 Range/ 10 m Angle/ 60° INTERFACES Video Output/ BNC, 1.0 Vp-p, 75 Ohm INSTALLATION PARAMETERS Dimensions (mm)/ 95 (Ф) x 63 (H) Weight/ 0.25 kg Degree of Protection/ IP 66 (details in the user’s manual) Enclosure/ vandalproof aluminium, white Power Supply/ 12 VDC Power Consumption/ 1 W, 3 W (IR on) Operating Temperature/ -30°C ~ 55°C

89

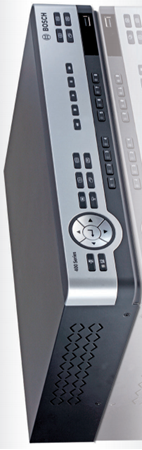

BOSCH   DIGITAL VIDEO RECORDER 440 SERIES

www.novuscctv.com

DVR-440-04A050

Made in Germany

Digital Video Recorder 440 Series DVR-440-04A050 4-Channel real-time recording Flexible viewing with two monitor outputs Remote viewing, playback, control, and configuration Easy Pan/Tilt/Zoom camera control DVR viewer iPhone App The Bosch Video Recorder 440/480 Series is a 4/8 channel digital recorder that uses the latest H.264 compression technology. With the supplied Control Center software and built-in web server, the 440/480 Series is a fully integrated, stand-alone video solution that's ready to go, straight out of the box. Available in 4-channel and 8-channel versions, the 440/480 Series features a highly reliable embedded design that minimizes maintenance and operational costs. Electrical Rated Voltage and Power External power adapter AC input 110–240 VAC; 50/60 Hz; 1.8 A External power adapter DC output 12 VDC; 3 A DVR Power input 12 VDC; 3 A Video Video Standard SVGA PAL / NTSC auto-detect Live Resolution SVGA: 800x600, 1024x768 or 1280x1024 PAL: 720x576, NTSC: 720x484 Digital Zoom 2 times AGC Automatic gain adjustment for each video input Compression H.264 Inputs Composite video 1 Vpp, 75 ohm, automatic termination Outputs Monitor A: VGA RGB Monitor B: 1 Vpp, 75 ohm, sync. 0.3 V ±10% Audio Input Mono RCA, 1.0 Vpp Output Mono RCA, 1.0 Vpp Compression ADPCM Sample rate 16 kHz per channel Bit rate 8-bit Alarm Handling Inputs 4/8 Inputs configurable NO/NC, max input voltage 15 VDC Outputs 1 Relay output, configurable NO/NC, max. rated 30 VAC, 30 VDC 0.5 A continuous Control RS232 Output signals according to EIA/TIA‑232‑F, max. input voltage ±25 V RS232 Support Bosch domes via RS232/Bi-phase converter RS485 Output signals according to RS485, max. signal voltage -8 to +12 V RS485 Support Bosch domes, and Pelco P and D Connectors Video Inputs 4/8 BNC Monitor 1 VGA d-SUB, 1 BNC Alarm connectors Screw terminal inputs, cable diameter AWG26‑16 (0.13-1.5 mm) Audio Inputs 1 RCA (CINCH) Audio Output 1 RCA (CINCH) Ethernet RJ45, 10/100 BaseT according to IEEE802.3 RS232 DB9 Male RS485 Screw terminal output, cable diameter AWG28‑16 (0.08-1.5 mm) USB Type A Connector USB 2.0 on front and rear for mouse or USB memory device Storage Hard Disk Supports 1 SATA hard drive up to 1TB. (Third party hard disks are supported from firmware version 2.0.6 onwards. A list of tested disks is available in the instruction manual.)* *Bosch cannot be held liable for any loss or damages or system malfunction resulting from the use of non-Bosch drives in DVR recorders. Display Modes Monitor A Full, multiscreen, sequence (live and playback), alarm call-up (live) Monitor B Full, multiscreen, sequence, alarm call-up (live) Recording Modes Normal Continuous recording (with or without overwriting) Event Input and motion recording (with or without overwriting)

210



NOVUS NEW   MULTISTANDARD AHD RECORDER
www.novuscctv.com
NHDR-6004-H1
Made in POLAND


NOVUS MULTISTANDARD AHD RECORDER NHDR-6004-H1

Video channels: 4, audio channels: 1
Recording speed: up to 120 fps (AHD), up to 180 fps (IP)
Internal HDDs mount: up to 1
Monitor outputs: 3 (2 x main, 1 x spot)
Supports HD analog cameras (720p, 1080p, 4MPX, 5MPX)
Supports AHD, TVI, CVI cameras
IP cameras support (hybrid mode)
Intelligent image analysis
NOVUS MULTISTANDARD AHD RECORDER NHDR-6004-H1 VIDEO Video Input: 4 x BNC Operating mode: AHD 5Mpx, TVI 5Mpx, CVI 5Mpx, analog 960H Monitor Output: main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD), 1 x BNC, spot: 1 x BNC interchangeably to main output IP Streams: hybrid mode: 4 x BNC + 2 x IP IP mode: 0 x BNC + 6 x IP Supported IP resolution: max. 2592 x 1944 AUDIO Audio Input/Output: 1 x RCA (Line-in)/1 x HDMI, 1 x RCA RECORDING Compression: H.264, H.265 Recording Speed: 120 fps (1280 x 720 - HD) 120 fps (960 x 1080 - 1080p Lite) 60 fps (1920 x 1080 - FullHD) 60 fps (1280 x 1440 - 4Mpx Lite) 40 fps (1280 x 1944 - 5Mpx Lite) IP recording speed: hybrid mode: 60fps IP mode: 180fps IP stream size: hybrid mode: 16 Mb/s in total from all IP cameras IP mode: 36 Mb/s in total from all IP cameras Recording Mode: continuous, triggered by: REC/PANIC button, motion detection, image analysis Schedule: individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, possibility of combining individual recording modes Prealarm/postalarm: up to 5 s/up to 10 min PLAYBACK Playback speed: 120 fps IP playback speed: 120 fps Recorded Data Search: by date/time, events, image analysis events, motion in a defined area, tags BACKUP Backup Methods: USB port (HDD or Flash memory), network Backup File Format: AVI, RPAS (player included) STORAGE Internal storage: available mount: 1 x HDD 3.5” SATA Total Internal Capacity: 8 TB ALARM Motion Detection: 18 x 22 grid, individual settings of sensitivity System Reaction to Alarm Events: buzzer, e-mail, recording activation, PTZ, Full Screen INTELLIGENT IMAGE ANALYSIS Supported functions for analog cameras: Line cross, Zone entrance Supported functions for IP cameras: Object detection, Exception, Zone entrance, Cross counting NETWORK Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Network Protocols Support: HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP, P2P PC/MAC Software: NMS, Internet Explorer, NVR-6000 Viewer, N Control 6000/N Control 6000 Mobile applications: SuperLive Plus (iPhone, Android) Max. Number of Connections with DVR: 5 (live monitoring: 5, playback: 5, configuration: 5) , live monitoring up to 10 mainstreams, 24 substreams, playback up to 5 streams Bandwidth: 40 Mb/s in total to all client workstations PTZ PTZ Ports: 1 x RS-485 PTZ Protocols: Pelco-D, Pelco-P PTZ Functions: pan/tilt/zoom, preset commands, patterns COAX COAX Functions: menu, zoom, focus, PTZ AUXILIARY INTERFACES USB Ports: 2 x USB 2.0, OPERATING SYSTEM Operating System: Linux OSD: languages: Polish, English, Russian, others Control: IR remote controller, PC mouse (in-set included), network System Diagnostic: automatic control of: HDDs, camera connection loss Security: password protection, IP filtering INSTALLATION PARAMETERS Dimensions (mm): 255 (W) x 42 (H) x 222 (D) Weight: 0.73 kg (without HDD) Power Supply: 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included) Power Consumption: 20 W (with 1 HDD) Operating Temperature: -10°C ~ 50°C




119



NOVUS NEW   MULTISTANDARD AHD RECORDER
www.novuscctv.com
NHDR-6008-H1
Made in POLAND


NOVUS MULTISTANDARD AHD RECORDER NHDR-6004-H1

Video channels: 8, audio channels: 1
Recording speed: up to 240 fps (AHD), up to 360 fps (IP)
Internal HDDs mount: up to 1
Monitor outputs: 3 (2 x main, 1 x spot)
Supports HD analog cameras (720p, 1080p, 4MPX, 5MPX)
Supports AHD, TVI, CVI cameras
IP cameras support (hybrid mode)
Intelligent image analysis
NOVUS MULTISTANDARD AHD RECORDER NHDR-6008-H1 VIDEO Video Input: 8 x BNC Operating mode: AHD 5Mpx, TVI 5Mpx, CVI 5Mpx, analog 960H Monitor Output: main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD), 1 x BNC, spot: 1 x BNC interchangeably to main output IP Streams: hybrid mode: 8 x BNC + 4 x IP IP mode: 0 x BNC + 12 x IP Supported IP resolution: max. 2592 x 1944 AUDIO Audio Input/Output: 1 x RCA (Line-in)/1 x HDMI, 1 x RCA RECORDING Compression: H.264, H.265 Recording Speed: 240 fps (1280 x 720 - HD) 240 fps (960 x 1080 - 1080p Lite) 120 fps (1920 x 1080 - FullHD) 120 fps (1280 x 1440 - 4Mpx Lite) 80 fps (1280 x 1944 - 5Mpx Lite) IP recording speed: hybrid mode: 120fps IP mode: 360fps IP stream size: hybrid mode: 32 Mb/s in total from all IP cameras IP mode: 60 Mb/s in total from all IP cameras Recording Mode: continuous, triggered by: REC/PANIC button, motion detection, image analysis Schedule: individual settings for: each camera, each day of the week, configuration with an accuracy of: 1 min, possibility of combining individual recording modes Prealarm/postalarm: up to 5 s/up to 10 min PLAYBACK Playback speed: 120 fps IP playback speed: 120 fps Recorded Data Search: by date/time, events, image analysis events, motion in a defined area, tags BACKUP Backup Methods: USB port (HDD or Flash memory), network Backup File Format: AVI, RPAS (player included) STORAGE Internal storage: available mount: 1 x HDD 3.5” SATA Total Internal Capacity: 8 TB ALARM Motion Detection: 18 x 22 grid, individual settings of sensitivity System Reaction to Alarm Events: buzzer, e-mail, recording activation, PTZ, Full Screen INTELLIGENT IMAGE ANALYSIS Supported functions for analog cameras: Line cross, Zone entrance Supported functions for IP cameras: Object detection, Exception, Zone entrance, Cross counting NETWORK Network Interface: 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s Network Protocols Support: HTTP, TCP/IP, IPv4, HTTPS, FTP, DHCP, DNS, DDNS, NTP, RTSP, UPnP, PPPoE, SMTP, P2P PC/MAC Software: NMS, Internet Explorer, NVR-6000 Viewer, N Control 6000/N Control 6000 Mobile applications: SuperLive Plus (iPhone, Android) Max. Number of Connections with DVR: 5 (live monitoring: 5, playback: 5, configuration: 5) , live monitoring up to 10 mainstreams, 24 substreams, playback up to 5 streams Bandwidth: 60 Mb/s in total to all client workstations PTZ PTZ Ports: 1 x RS-485 PTZ Protocols: Pelco-D, Pelco-P PTZ Functions: pan/tilt/zoom, preset commands, patterns COAX COAX Functions: menu, zoom, focus, PTZ AUXILIARY INTERFACES USB Ports: 2 x USB 2.0, OPERATING SYSTEM Operating System: Linux OSD: languages: Polish, English, Russian, others Control: IR remote controller, PC mouse (in-set included), network System Diagnostic: automatic control of: HDDs, camera connection loss Security: password protection, IP filtering INSTALLATION PARAMETERS Dimensions (mm): 255 (W) x 42 (H) x 233 (D) Weight: 0.77 kg (without HDD) Power Supply: 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included) Power Consumption: 20 W (with 1 HDD) Operating Temperature: -10°C ~ 50°C




201


NOVUS AHD RECORDER
www.novuscctv.com
NHDR-5008AHD-II
Made in POLAND

NOVUS AHD RECORDER NHDR-5008AHD-II Video Input/ 8 x BNC loop-through Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD) AUDIO Audio Input/Output/ 8 x RCA (Line-in)/1 x HDMI, 1 x RCA RECORDING Compression/ H.264 Recording Speed/ 200 fps (464 x 288), 200 fps (928 x 288), 200 fps (928 x 576), 200 fps (1280 x 720), 120 fps (1920 x 1080) Recording Mode/ continuous, triggered by: REC/PANIC button, alarm input, motion detection Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 30 min, possibility of combining individual recording modes Prealarm/postalarm/ up to 3 s/up to 5 min PLAYBACK Playback Speed/ 200 fps Recorded Data Search/ by date/time, events, object appearance/disappearance BACKUP Backup Methods/ USB port (HDD or Flash memory), network Backup File Format/ BMP, AVI, H264 STORAGE Internal storage/ available mount: 2 x HDD 3.5” SATA Total Internal Capacity/ 12 TB ALARM Alarm Input/Output/ 8/1 relay type System Reaction to Alarm Events/ buzzer, e-mail, alarm output activation, screen message, recording activation NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s PC/MAC Software/ NMS, Internet Explorer, NHDR-5000 Viewer, Firefox, Opera/Safari Mobile applications/ RXCamLink (iPhone, Android) Max. Number of Connections with DVR/ 3 (live monitoring: 3, playback: 3, configuration: 3) PTZ PTZ Ports/ 1 x RS-485 PTZ Protocols/ Pelco-D, Pelco-P PTZ Functions/ pan/tilt/zoom, preset commands, patterns AUXILIARY INTERFACES USB Ports/ 2 x USB 2.0, OPERATING SYSTEM Operating System/ Linux OSD/ languages: Polish, English Control/ front panel, PC mouse and IR remote controller (in-set included), network, NV-KBD50 keyboard System Diagnostic/ automatic control of: HDDs INSTALLATION PARAMETERS Dimensions (mm)/ 380 (W) x 50 (H) x 340 (D) Weight/ 1.5 kg (without HDDs) Power Supply/ 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included) Power Consumption/ 30 W (with 2 HDDs) Operating Temperature/ -10°C ~ 45°C

207


NOVUS AHD RECORDER
www.novuscctv.com
NHDR-5308AHD
Made in POLAND

NOVUS AHD RECORDER NHDR-5008AHD-II Video Input/ 8 x BNC loop-through Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD) AUDIO Audio Input/Output/ 8 x RCA (Line-in)/1 x HDMI, 1 x RCA RECORDING Compression/ H.264 Recording Speed/ 200 fps (464 x 288), 200 fps (928 x 288), 200 fps (928 x 576), 200 fps (1280 x 720), 120 fps (1920 x 1080) Recording Mode/ continuous, triggered by: REC/PANIC button, alarm input, motion detection Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 30 min, possibility of combining individual recording modes Prealarm/postalarm/ up to 3 s/up to 5 min PLAYBACK Playback Speed/ 200 fps Recorded Data Search/ by date/time, events, object appearance/disappearance BACKUP Backup Methods/ USB port (HDD or Flash memory), network Backup File Format/ BMP, AVI, H264 STORAGE Internal storage/ available mount: 2 x HDD 3.5” SATA Total Internal Capacity/ 12 TB ALARM Alarm Input/Output/ 8/1 relay type System Reaction to Alarm Events/ buzzer, e-mail, alarm output activation, screen message, recording activation NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s PC/MAC Software/ NMS, Internet Explorer, NHDR-5000 Viewer, Firefox, Opera/Safari Mobile applications/ RXCamLink (iPhone, Android) Max. Number of Connections with DVR/ 3 (live monitoring: 3, playback: 3, configuration: 3) PTZ PTZ Ports/ 1 x RS-485 PTZ Protocols/ Pelco-D, Pelco-P PTZ Functions/ pan/tilt/zoom, preset commands, patterns AUXILIARY INTERFACES USB Ports/ 2 x USB 2.0, OPERATING SYSTEM Operating System/ Linux OSD/ languages: Polish, English Control/ front panel, PC mouse and IR remote controller (in-set included), network, NV-KBD50 keyboard System Diagnostic/ automatic control of: HDDs INSTALLATION PARAMETERS Dimensions (mm)/ 380 (W) x 50 (H) x 340 (D) Weight/ 1.5 kg (without HDDs) Power Supply/ 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included) Power Consumption/ 30 W (with 2 HDDs) Operating Temperature/ -10°C ~ 45°C

256


NOVUS AHD RECORDER
www.novuscctv.com
NHDR-3216AHD
Made in POLAND

NOVUS AHD RECORDER NHDR-3216AHD Video Input/ 16 x BNC Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD) IP Streams/ DVR mode: 16 x BNC + 0 x IP hybrid mode: 16 x BNC + 8 x IP IP mode: 0 x BNC + 24 x IP Supported IP resolution/ max. 2688 x 1520 AUDIO Audio Input/Output/ 16 x RCA (Line-in)/1 x HDMI, 1 x RCA RECORDING Compression/ H.264 Recording Speed/ 400 fps (960 x 576 - 960H), 400 fps (1280 x 720 - HD), 400 fps (960 x 1080 - 1080p Lite) IP recording speed/ hybrid mode: 200fps IP mode: 600fps IP stream size/ hybrid mode: 24 Mb/s in total from all IP cameras IP mode: 72 Mb/s in total from all IP cameras Recording Mode/ continuous, triggered by: REC/PANIC button, alarm input, motion detection, PIR alarm Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 30 min, possibility of combining individual recording modes Prealarm/postalarm/ up to 3 s/up to 5 min PLAYBACK Playback speed/ 400 fps IP playback speed/ 350 fps Recorded Data Search/ by date/time, events, object appearance/disappearance BACKUP Backup Methods/ USB port (HDD or Flash memory), network Backup File Format/ BMP, MP4, AVI, H264 STORAGE Internal storage/ available mount: 2 x HDD 3.5” SATA Total Internal Capacity/ 16 TB External storage/ 1 x eSATA Total External Capacity/ 24 TB ALARM Alarm Input/Output/ 16/1 relay type Motion Detection/ 36 x 44 grid, individual settings of sensitivity, PIR cameras support System Reaction to Alarm Events/ buzzer, e-mail, alarm output activation, screen message, recording activation NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s PC/MAC Software/ NMS, Internet Explorer, NHDR-5000 Viewer/Safari, NHDR-5000 Viewer Mobile applications/ RxCamView (iPhone, Android) Max. Number of Connections with DVR/ 5 (live monitoring: 5, playback: 1, configuration: 5) Bandwidth/ 32 Mb/s in total to all client workstations PTZ PTZ Ports/ 1 x RS-485 PTZ Protocols/ Pelco-D, Pelco-P PTZ Functions/ pan/tilt/zoom, preset commands, patterns COAX COAX Functions/ menu, zoom, focus, PTZ AUXILIARY INTERFACES USB Ports/ 2 x USB 2.0, OPERATING SYSTEM Operating System/ Linux OSD/ languages: Polish, English, Russian, others Control/ PC mouse and IR remote controller (in-set included), network, NV-KBD50 keyboard System Diagnostic/ automatic control of: HDDs, camera connection loss INSTALLATION PARAMETERS Dimensions (mm)/ 380 (W) x 50 (H) x 340 (D) Weight/ 1.5 kg (without HDD) Power Supply/ 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included) Power Consumption/ 30 W (with 2 HDDs) Operating Temperature/ -10°C ~ 45°C

225


NOVUS AHD RECORDER
www.novuscctv.com
NHDR-5016AHD
Made in POLAND

NOVUS AHD RECORDER NHDR-5016AHD Video Input/ 16 x BNC Monitor Output/ main (split screen, full screen, sequence): 1 x HDMI (FullHD), 1 x VGA (FullHD) AUDIO Audio Input/Output/ 16 x RCA (Line-in)/1 x HDMI, 1 x RCA RECORDING Compression/ H.264 Recording Speed/ 400 fps (464 x 288), 400 fps (928 x 288), 400 fps (928 x 576), 400 fps (1280 x 720), 240 fps (1920 x 1080) Recording Mode/ continuous, triggered by: REC/PANIC button, alarm input, motion detection Schedule/ individual settings for: each camera, each day of the week, configuration with an accuracy of: 30 min, possibility of combining individual recording modes Prealarm/postalarm/ up to 3 s/up to 5 min PLAYBACK Playback Speed/ 400 fps Recorded Data Search/ by date/time, events, object appearance/disappearance BACKUP Backup Methods/ USB port (HDD or Flash memory), network Backup File Format/ BMP, AVI, H264 STORAGE Internal storage/ available mount: 2 x HDD 3.5” SATA ** Total Internal Capacity/ 12 TB ALARM Alarm Input/Output/ 16/1 relay type System Reaction to Alarm Events/ buzzer, e-mail, alarm output activation, screen message, recording activation NETWORK Network Interface/ 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s PC/MAC Software/ NMS, Internet Explorer, NHDR-5000 Viewer, Firefox, Opera/Safari Mobile applications/ RXCamLink (iPhone, Android) Max. Number of Connections with DVR/ 3 (live monitoring: 3, playback: 3, configuration: 3) PTZ PTZ Ports/ 1 x RS-485 PTZ Protocols/ Pelco-D, Pelco-P PTZ Functions/ pan/tilt/zoom, preset commands, patterns AUXILIARY INTERFACES USB Ports/ 2 x USB 2.0, OPERATING SYSTEM Operating System/ Linux OSD/ languages: Polish, English Control/ front panel, PC mouse and IR remote controller (in-set included), network, NV-KBD50 keyboard System Diagnostic/ automatic control of: HDDs INSTALLATION PARAMETERS Dimensions (mm)/ 380 (W) x 50 (H) x 340 (D) Weight/ 1.5 kg (without HDDs) Power Supply/ 12 VDC (100 ~ 240 VAC/12 VDC PSU in-set included) Power Consumption/ 30 W (with 2 HDDs) Operating Temperature/ -10°C ~ 45°C

265
